05-FORTRAN95 课程设计
提示
经过允许的才会发布在此,也为了宣传。感谢,这些学员的支持。

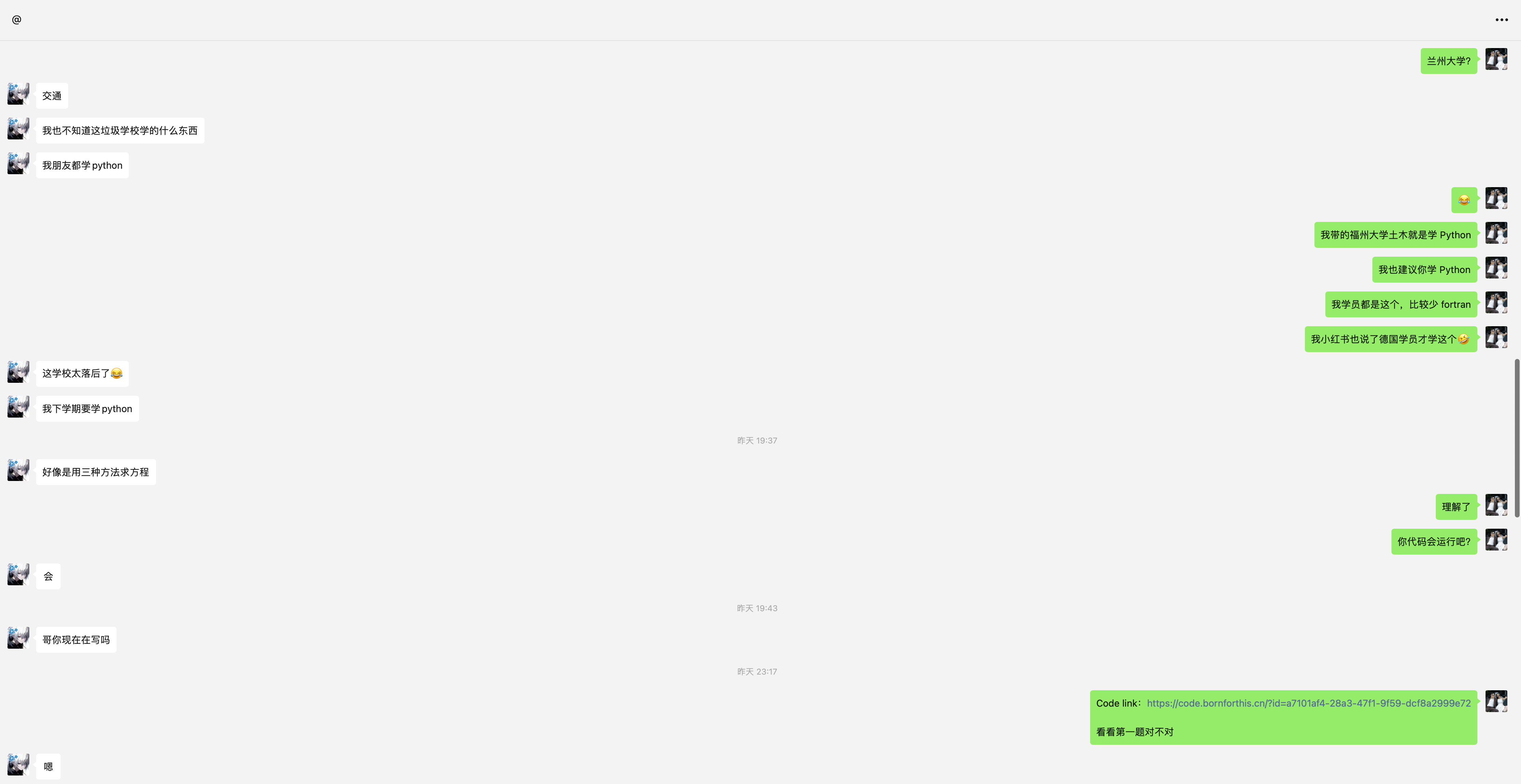

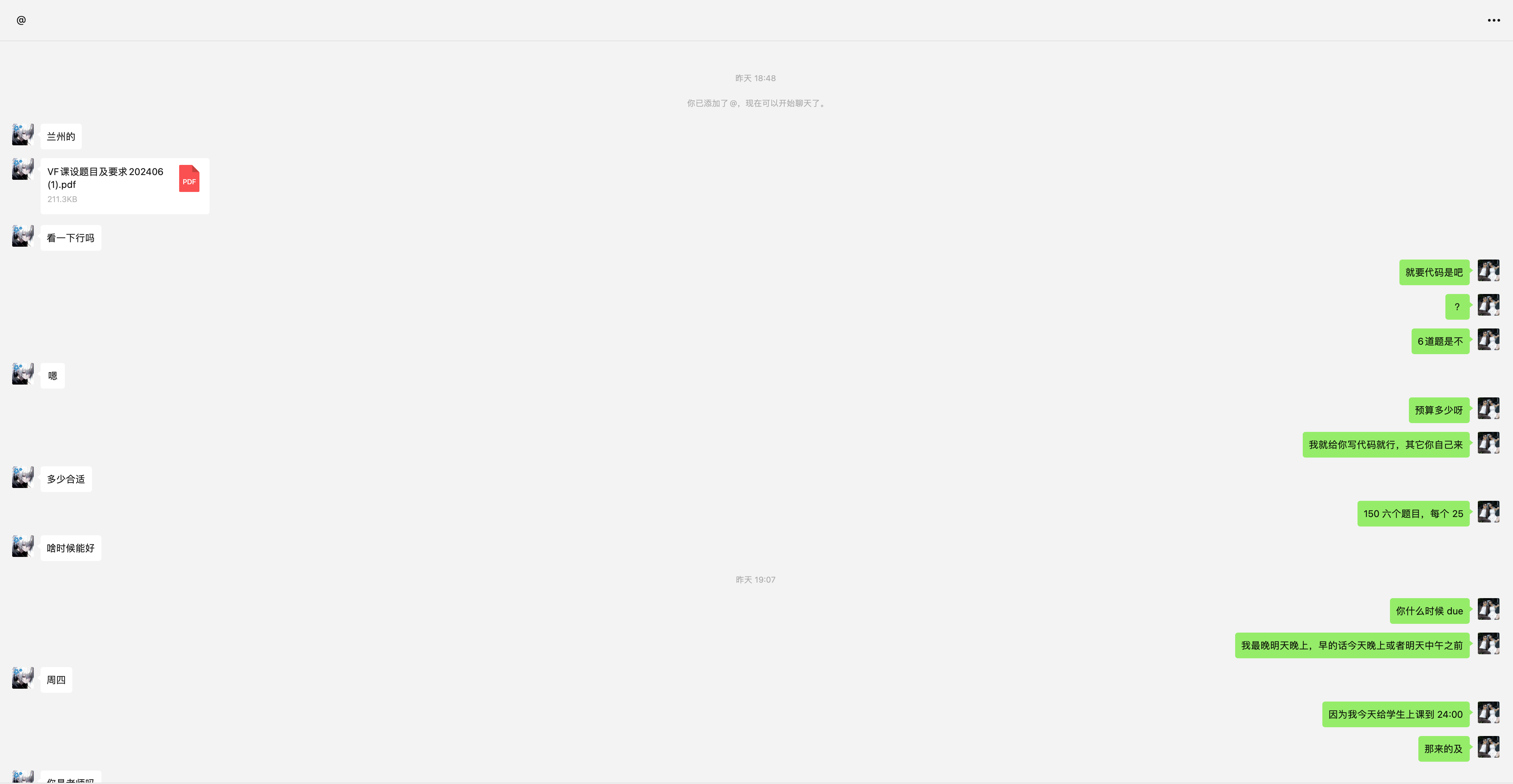

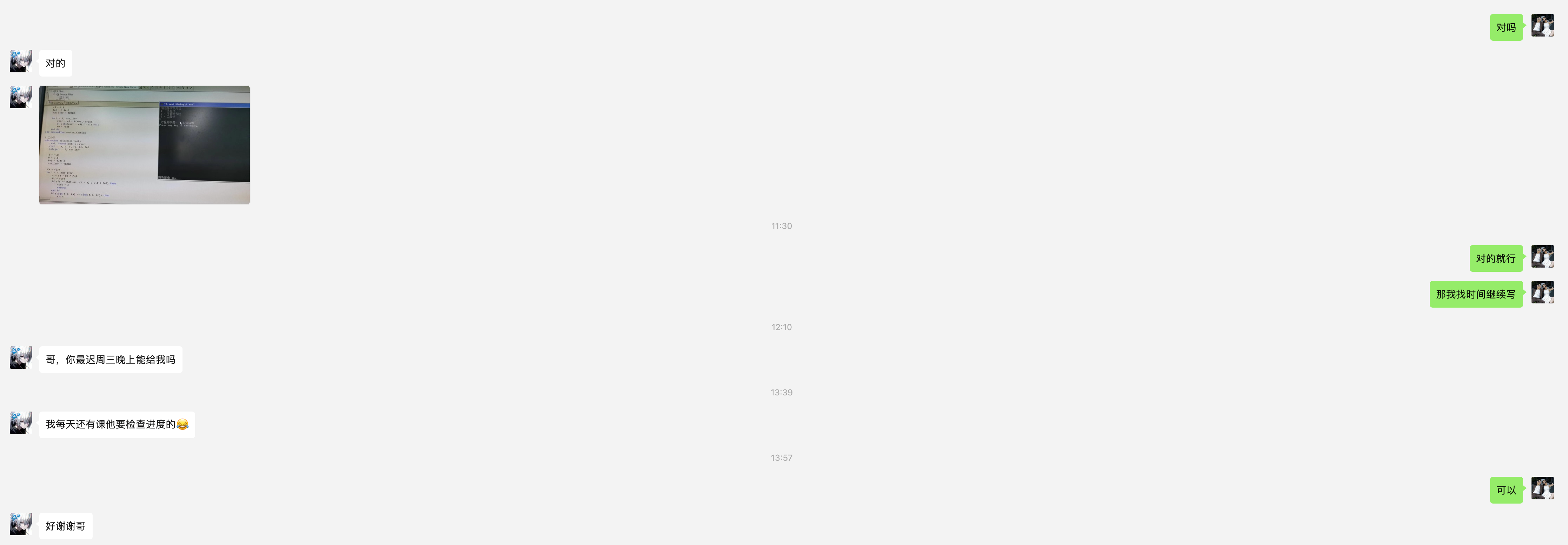

0. 前言
![](/assets/image-20240625234348705-Br7u1pS9.png)
![](/assets/image-20240625234406757-B9oCXQ_g.png)
![](/assets/image-20240625234426479-d-i7-lli.png)
![](/assets/image-20240625234447371-1E9GskZj.png)
![](/assets/image-20240625234503596-CWeBAO1C.png)
根据所学知识,完成以下题目,5 人1 组(1 人1 题,即6 选5) ,提交一份完整的文档(打印版和电子版),文档应包含以下主要内容:
封面及目录;
要求:封面自行设计,要包括专业、班级、课程名称、姓名、学号、指导教师;
目录题头用三号黑体字居中书写,隔行书写目录内容。目录中各级题序及标题用小四号黑体;
解题所用算法的 N-S 流程图或过程说明;
用 FORTRAN 语言编写的源程序(必要的变量说明和注释);
符合具体选题要求的输入、输出(文件及数据);
报告正文部分要求:正文部分一律用五号字,宋体,1.5 倍行距。一级大标题小
三号字靠左,加粗;二级标题四号字靠左,加粗;三级标题小四号字靠左,加粗。
第18 周周五答辩,答辩后提交报告。

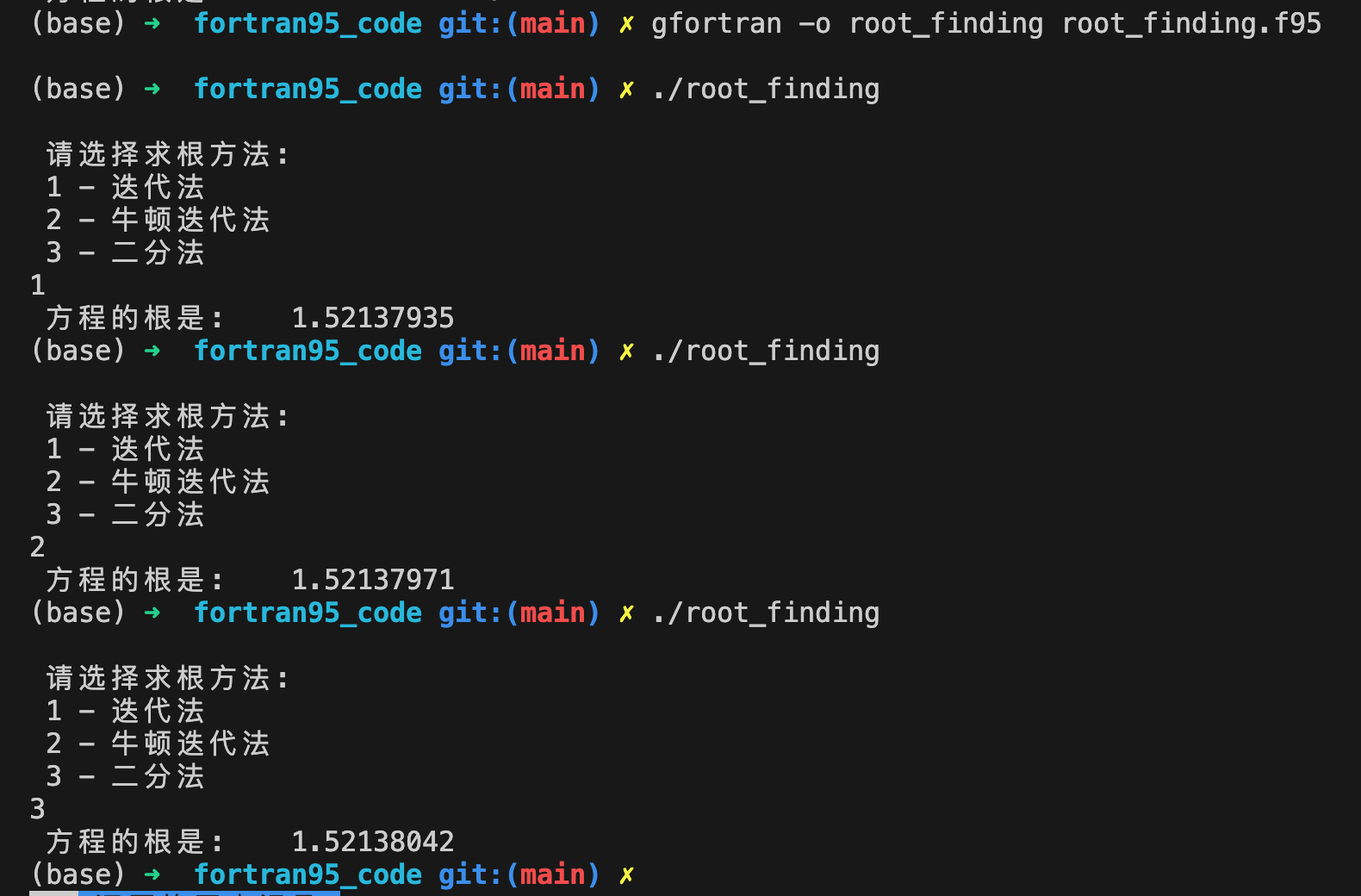

一、求一元方程的根
1、采用语句函数或函数子程序自定义一元方程(每组的方程不能相同) ;
2、设计简单的文本菜单,使程序可选择以下多种方法求该方程的根;
METHOD = 1 迭代法
METHOD = 2 牛顿迭代法
METHOD = 3 二分法
对于不同的近似算法分别编写子程序,精度要求 。
program root_finding
implicit none
! 定义变量
integer :: method
real :: root
! 文本菜单
print *, '请选择求根方法:'
print *, '1 - 迭代法'
print *, '2 - 牛顿迭代法'
print *, '3 - 二分法'
read *, method
! 根据选择执行不同的方法
select case (method)
case (1)
call fixed_point_iteration(root)
case (2)
call newton_raphson(root)
case (3)
call bisection(root)
case default
print *, '无效的输入。'
end select
print *, '方程的根是: ', root
end program root_finding
! 定义方程 f(x) = x^3 - x - 2
real function f(x)
real, intent(in) :: x
f = x**3 - x - 2
end function f
! 定义导数 f'(x) = 3x^2 - 1
real function df(x)
real, intent(in) :: x
df = 3*x**2 - 1
end function df
! 迭代法
subroutine fixed_point_iteration(root)
real, intent(out) :: root
real :: x0, x1, lambda, tol
integer :: i, max_iter
x0 = 1.0 ! 初值
lambda = 0.1 ! 步长系数
tol = 1.0e-6
max_iter = 10000
do i = 1, max_iter
x1 = x0 - lambda * f(x0)
if (abs(x1 - x0) < tol) then
root = x1
return
end if
x0 = x1
end do
print *, '迭代可能未收敛'
end subroutine fixed_point_iteration
! 牛顿迭代法
subroutine newton_raphson(root)
real, intent(out) :: root
real :: x0, tol
integer :: i, max_iter
x0 = 1.0
tol = 1.0e-6
max_iter = 10000
do i = 1, max_iter
root = x0 - f(x0) / df(x0)
if (abs(root - x0) < tol) exit
x0 = root
end do
end subroutine newton_raphson
! 二分法
subroutine bisection(root)
real, intent(out) :: root
real :: a, b, c, fa, fc, tol
integer :: i, max_iter
a = 1.0
b = 3.0
tol = 1.0e-6
max_iter = 10000
fa = f(a)
do i = 1, max_iter
c = (a + b) / 2.0
fc = f(c)
if (fc == 0.0 .or. (b - a) / 2.0 < tol) then
root = c
return
end if
if (sign(1.0, fa) == sign(1.0, fc)) then
a = c
fa = fc
else
b = c
end if
end do
root = c
end subroutine bisection
![](/assets/image-20240625234210596-B4ljzM8H.png)

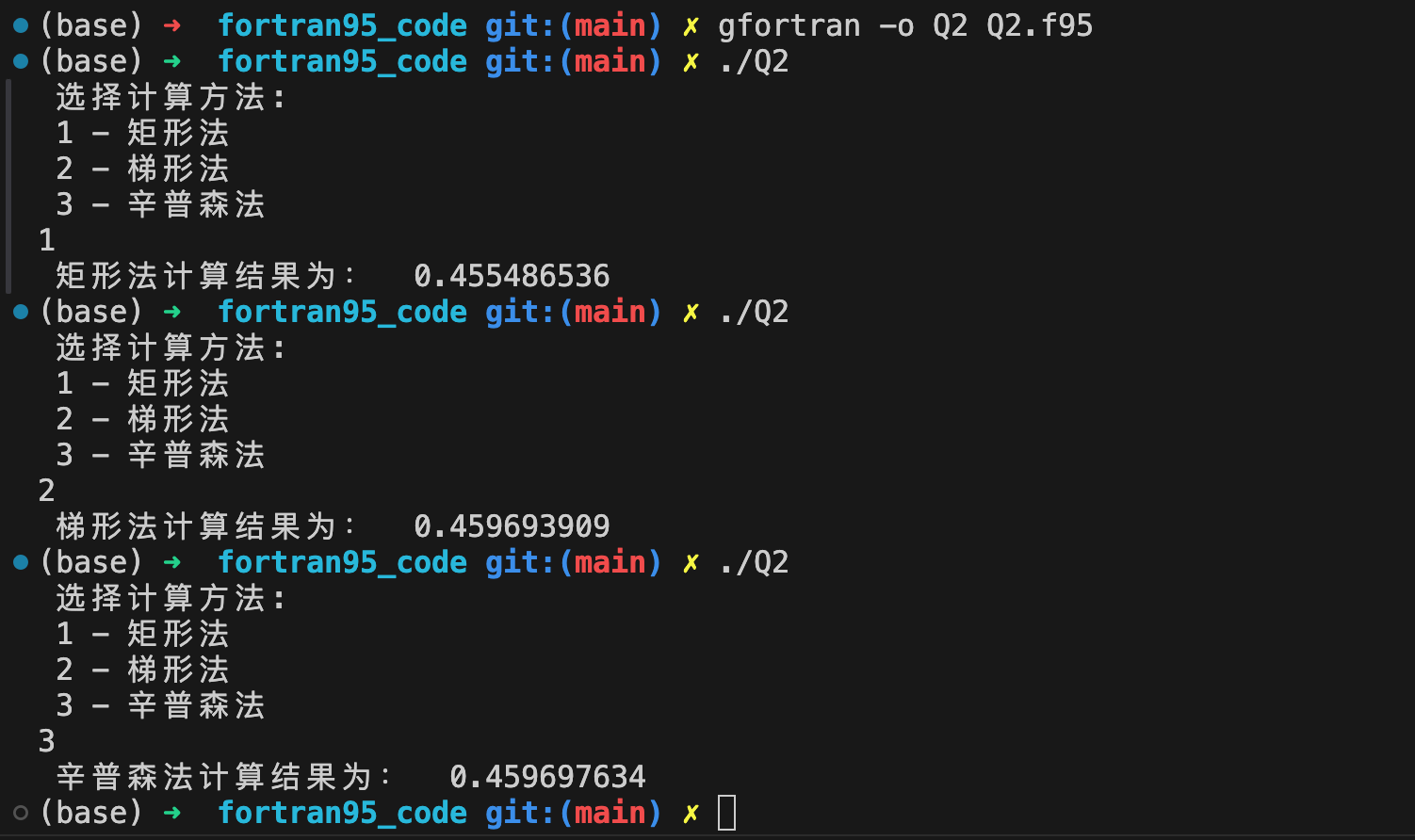

二、求定积分
1、设计简单的文本菜单,使程序可选择以下多种方法定积分矩形法、梯形法、辛普生法
2、对于不同的算法分别编写子程序,选择调用
program IntegralCalculator
implicit none
! 定义变量
integer :: choice
real :: a, b, integral
integer :: n
! 界限和分割数
a = 0.0
b = 1.0
n = 100
print*, "选择计算方法:"
print*, "1 - 矩形法"
print*, "2 - 梯形法"
print*, "3 - 辛普森法"
read*, choice
! 根据用户选择调用相应方法
select case (choice)
case (1)
integral = rectangleMethod(a, b, n)
print*, "矩形法计算结果为:", integral
case (2)
integral = trapezoidMethod(a, b, n)
print*, "梯形法计算结果为:", integral
case (3)
integral = simpsonMethod(a, b, n)
print*, "辛普森法计算结果为:", integral
case default
print*, "无效选择"
end select
contains
! 矩形法子程序
function rectangleMethod(a, b, n) result(integral)
real, intent(in) :: a, b
integer, intent(in) :: n
real :: integral, h, x
integer :: i
h = (b - a) / n
integral = 0.0
do i = 0, n - 1
x = a + i * h
integral = integral + f(x) * h
end do
end function rectangleMethod
! 梯形法子程序
function trapezoidMethod(a, b, n) result(integral)
real, intent(in) :: a, b
integer, intent(in) :: n
real :: integral, h, x
integer :: i
h = (b - a) / n
integral = (f(a) + f(b)) / 2.0
do i = 1, n - 1
x = a + i * h
integral = integral + f(x)
end do
integral = integral * h
end function trapezoidMethod
! 辛普森法子程序
function simpsonMethod(a, b, n) result(integral)
real, intent(in) :: a, b
integer, intent(in) :: n
real :: integral, h, x
integer :: i
h = (b - a) / n
integral = f(a) + f(b)
do i = 1, n - 1, 2
x = a + i * h
integral = integral + 4 * f(x)
end do
do i = 2, n - 2, 2
x = a + i * h
integral = integral + 2 * f(x)
end do
integral = integral * h / 3
end function simpsonMethod
! 被积函数定义
function f(x) result(fx)
real, intent(in) :: x
real :: fx
fx = sin(x) ! 示例函数
end function f
end program IntegralCalculator
![](/assets/image-20240625234230248-B9XQvtYr.png)

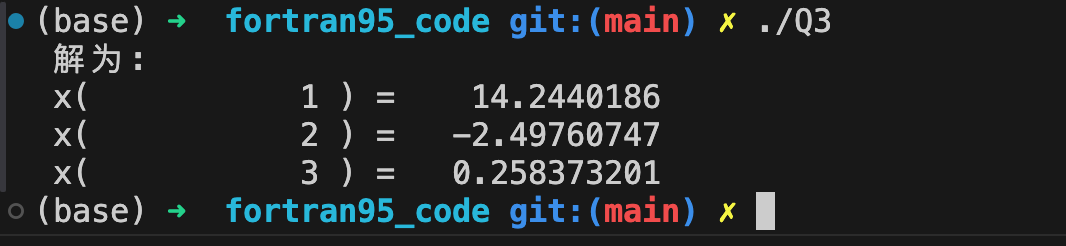

三、用高斯消元法求解三元一次方程组
方程组各小组自行定义。要求常数项为本组任意三个同学学号的后两位。(12、30、33)
program GaussianElimination
implicit none
! 定义变量
integer, parameter :: n = 3
real :: A(n, n+1) ! 增广矩阵
real :: x(n)
integer :: i, j, k
real :: factor
! 初始化增广矩阵
A = reshape([ &
2.0, -1.0, 3.0, 12.0, & ! 示例方程1: 2x - y + 3z = 12
-3.0, 4.0, -2.0, 30.0, & ! 示例方程2: -3x + 4y - 2z = 30
1.0, -2.0, 1.0, 33.0], & ! 示例方程3: x - 2y + z = 33
shape(A))
! 高斯消元法消元过程
do k = 1, n-1
do i = k+1, n
factor = A(i, k) / A(k, k)
do j = k, n+1
A(i, j) = A(i, j) - factor * A(k, j)
end do
end do
end do
! 回代过程
x(n) = A(n, n+1) / A(n, n)
do i = n-1, 1, -1
x(i) = A(i, n+1)
do j = i+1, n
x(i) = x(i) - A(i, j) * x(j)
end do
x(i) = x(i) / A(i, i)
end do
! 输出结果
print *, "解为:"
do i = 1, n
print *, "x(", i, ") = ", x(i)
end do
end program GaussianElimination
![](/assets/image-20240627000006787-k9HfhLic.png)

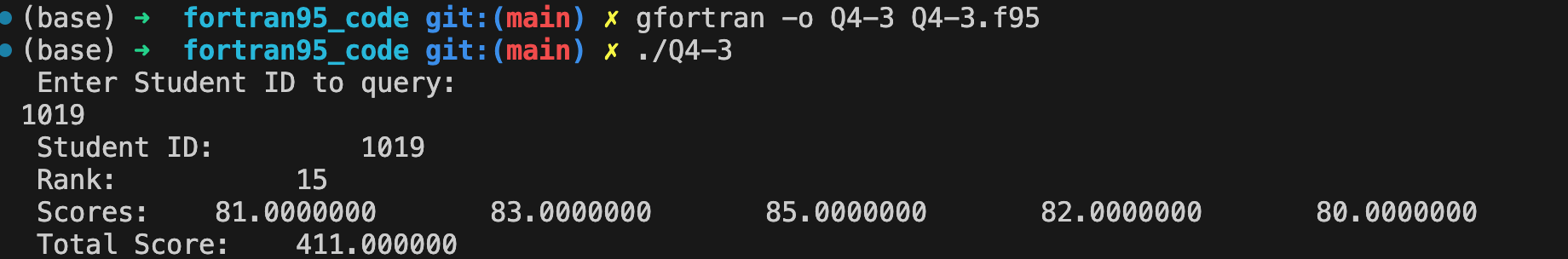

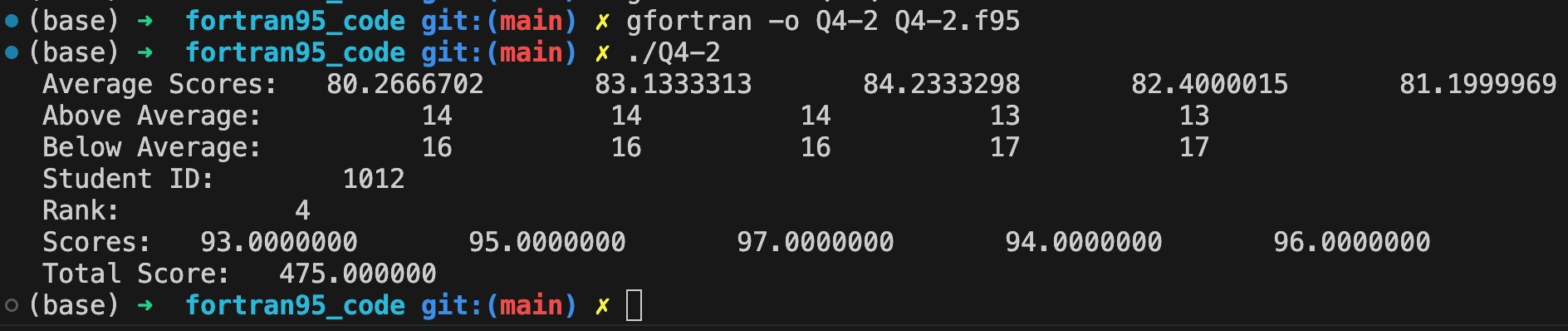

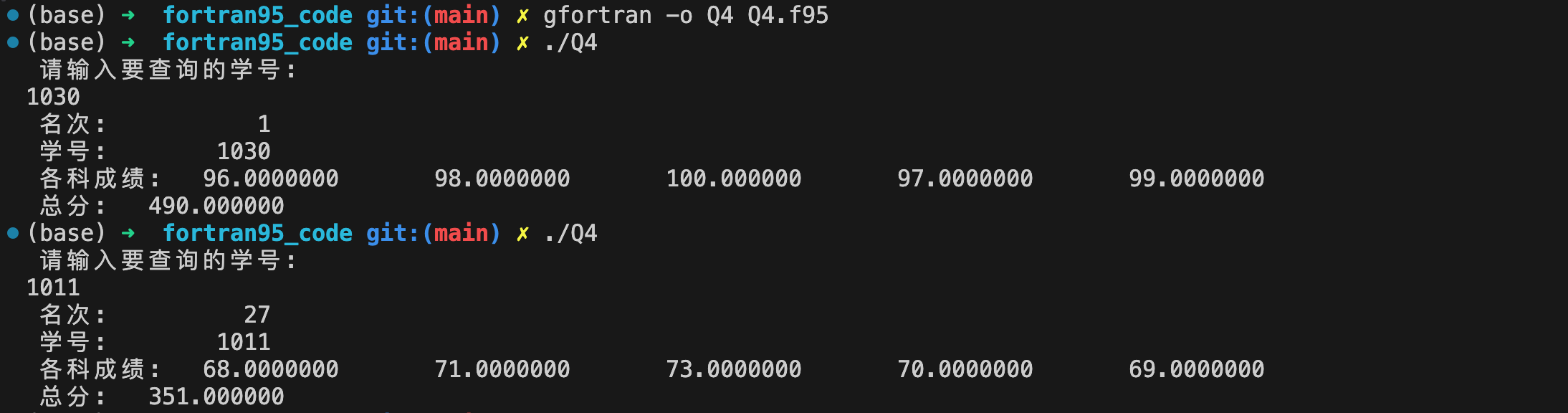

四、编写班级成绩考评程序
1、要求用多数组法和派生类两种方法实现;
2、采用数据文件输入某班级 30 名同学的学号及各五门课程的成绩;
3、求出每名同学的总分、统计各门课程的平均分;
4、统计各门课程中高于和低于平均分的人数;
5、按总分高低排序,文件输出名次、学号及总分。
6、分数查询,输入某一学号,输出该生的名次、各门课程的成绩及总分。
program student_scores_multiarray
implicit none
integer, parameter :: n = 30, m = 5
integer :: i, j, k, student_id(n), rank(n)
real :: scores(n, m), total_scores(n), average(m)
real :: above_avg(m), below_avg(m)
character(len=100) :: filename
real :: temp_score
integer :: temp_id
character(len=50) :: query_id
integer :: query_index
character(len=10) :: student_id_str(n), query_id_str
! 初始化
total_scores = 0.0
average = 0.0
above_avg = 0
below_avg = 0
! 读取数据
open(unit=1, file='student_scores.txt', status='old')
do i = 1, n
read(1, *) student_id(i), (scores(i, j), j = 1, m)
end do
close(1)
! 转换学号为字符串
do i = 1, n
write(student_id_str(i), '(I10)') student_id(i)
end do
! 计算总分和各科平均分
do i = 1, n
total_scores(i) = sum(scores(i, :))
do j = 1, m
average(j) = average(j) + scores(i, j)
end do
end do
average = average / n
! 统计高于和低于平均分的人数
do j = 1, m
do i = 1, n
if (scores(i, j) > average(j)) then
above_avg(j) = above_avg(j) + 1
else if (scores(i, j) < average(j)) then
below_avg(j) = below_avg(j) + 1
end if
end do
end do
! 按总分排序
do i = 1, n
rank(i) = i
end do
do i = 1, n-1
do j = i+1, n
if (total_scores(rank(i)) < total_scores(rank(j))) then
temp_score = total_scores(rank(i))
temp_id = rank(i)
rank(i) = rank(j)
rank(j) = temp_id
end if
end do
end do
! 输出排序结果
open(unit=2, file='sorted_scores.txt', status='replace')
write(2, '(A8, A10, A10)') 'Rank', 'StudentID', 'TotalScore'
do i = 1, n
write(2, '(I8, A10, F10.2)') i, trim(student_id_str(rank(i))), total_scores(rank(i))
end do
close(2)
! 查询功能
print *, "请输入要查询的学号:"
read(*, '(A)') query_id
query_index = -1
! 转换查询学号为字符串
query_id_str = adjustl(query_id)
do i = 1, n
if (adjustl(student_id_str(i)) == query_id_str) then
query_index = i
exit
end if
end do
if (query_index == -1) then
print *, "未找到该学号的学生。"
else
do i = 1, n
if (rank(i) == query_index) then
print *, "名次:", i
exit
end if
end do
print *, "学号:", student_id(query_index)
print *, "各科成绩:", (scores(query_index, j), j = 1, m)
print *, "总分:", total_scores(query_index)
end if
end program student_scores_multiarray
module student_module
implicit none
type :: student
integer :: id
real :: scores(5)
real :: total
end type student
type :: class
type(student), dimension(:), allocatable :: students
real :: avg_scores(5)
integer :: above_avg(5)
integer :: below_avg(5)
contains
procedure :: compute_totals
procedure :: compute_averages
procedure :: count_above_below_avg
procedure :: sort_by_total
procedure :: query_student
end type class
contains
subroutine compute_totals(this)
class(class), intent(inout) :: this
integer :: i
do i = 1, size(this%students)
this%students(i)%total = sum(this%students(i)%scores)
end do
end subroutine compute_totals
subroutine compute_averages(this)
class(class), intent(inout) :: this
integer :: i, j
real :: sum_scores(5)
sum_scores = 0.0
do i = 1, size(this%students)
do j = 1, 5
sum_scores(j) = sum_scores(j) + this%students(i)%scores(j)
end do
end do
this%avg_scores = sum_scores / size(this%students)
end subroutine compute_averages
subroutine count_above_below_avg(this)
class(class), intent(inout) :: this
integer :: i, j
this%above_avg = 0
this%below_avg = 0
do i = 1, size(this%students)
do j = 1, 5
if (this%students(i)%scores(j) >= this%avg_scores(j)) then
this%above_avg(j) = this%above_avg(j) + 1
else
this%below_avg(j) = this%below_avg(j) + 1
end if
end do
end do
end subroutine count_above_below_avg
subroutine sort_by_total(this)
class(class), intent(inout) :: this
integer :: i, j
type(student) :: temp
do i = 1, size(this%students)-1
do j = i + 1, size(this%students)
if (this%students(i)%total < this%students(j)%total) then
temp = this%students(i)
this%students(i) = this%students(j)
this%students(j) = temp
end if
end do
end do
end subroutine sort_by_total
subroutine query_student(this, id)
class(class), intent(in) :: this
integer, intent(in) :: id
integer :: i, j
do i = 1, size(this%students)
if (this%students(i)%id == id) then
print *, "Student ID:", this%students(i)%id
print *, "Rank:", i
print *, "Scores:", this%students(i)%scores
print *, "Total Score:", this%students(i)%total
return
end if
end do
print *, "Student ID not found."
end subroutine query_student
end module student_module
program class_evaluation
use student_module
implicit none
type(class) :: my_class
integer :: i, j
integer, parameter :: n = 30
real :: score
character(len=30) :: filename
allocate(my_class%students(n))
filename = 'student_scores.txt'
open(unit=10, file=filename, status='old')
do i = 1, n
read(10, *) my_class%students(i)%id, (my_class%students(i)%scores(j), j=1, 5)
end do
close(10)
call my_class%compute_totals()
call my_class%compute_averages()
call my_class%count_above_below_avg()
call my_class%sort_by_total()
! 输出排序后的成绩到文件
open(unit=20, file='sorted_scores.txt', status='replace')
do i = 1, n
write(20, *) i, my_class%students(i)%id, my_class%students(i)%total
end do
close(20)
! 输出各门课程的平均分和高于、低于平均分的人数
print *, "Average Scores:", my_class%avg_scores
print *, "Above Average:", my_class%above_avg
print *, "Below Average:", my_class%below_avg
! 查询学生成绩
call my_class%query_student(1012)
end program class_evaluation
module student_module
implicit none
type :: Student
integer :: id
real :: scores(5)
real :: total
integer :: rank
end type Student
type :: Class
type(Student), dimension(30) :: students
real, dimension(5) :: avg_scores
integer, dimension(5) :: above_avg, below_avg
contains
procedure :: calculate_totals
procedure :: calculate_averages
procedure :: count_above_below_avg
procedure :: sort_by_total
procedure :: query_student
end type Class
contains
subroutine calculate_totals(this)
class(Class), intent(inout) :: this
integer :: i
do i = 1, 30
this%students(i)%total = sum(this%students(i)%scores)
end do
end subroutine calculate_totals
subroutine calculate_averages(this)
class(Class), intent(inout) :: this
integer :: i, j
this%avg_scores = 0.0
do j = 1, 5
do i = 1, 30
this%avg_scores(j) = this%avg_scores(j) + this%students(i)%scores(j)
end do
this%avg_scores(j) = this%avg_scores(j) / 30.0
end do
end subroutine calculate_averages
subroutine count_above_below_avg(this)
class(Class), intent(inout) :: this
integer :: i, j
this%above_avg = 0
this%below_avg = 0
do j = 1, 5
do i = 1, 30
if (this%students(i)%scores(j) > this%avg_scores(j)) then
this%above_avg(j) = this%above_avg(j) + 1
else
this%below_avg(j) = this%below_avg(j) + 1
end if
end do
end do
end subroutine count_above_below_avg
subroutine sort_by_total(this)
class(Class), intent(inout) :: this
integer :: i, j
type(Student) :: temp
do i = 1, 29
do j = i + 1, 30
if (this%students(i)%total < this%students(j)%total) then
temp = this%students(i)
this%students(i) = this%students(j)
this%students(j) = temp
end if
end do
end do
do i = 1, 30
this%students(i)%rank = i
end do
end subroutine sort_by_total
subroutine query_student(this, id)
class(Class), intent(inout) :: this
integer, intent(in) :: id
integer :: i
do i = 1, 30
if (this%students(i)%id == id) then
print *, "Student ID: ", this%students(i)%id
print *, "Rank: ", this%students(i)%rank
print *, "Scores: ", this%students(i)%scores
print *, "Total Score: ", this%students(i)%total
return
end if
end do
print *, "Student ID not found!"
end subroutine query_student
end module student_module
program student_evaluation
use student_module
implicit none
type(Class) :: myclass
integer :: i, j, id
character(len=20) :: filename
character(len=100) :: line
real :: score
filename = "student_scores.txt"
open(unit=10, file=filename, status="old", action="read")
do i = 1, 30
read(10, *) myclass%students(i)%id, myclass%students(i)%scores
end do
close(10)
call myclass%calculate_totals()
call myclass%calculate_averages()
call myclass%count_above_below_avg()
call myclass%sort_by_total()
open(unit=20, file="sorted_scores.txt", status="replace", action="write")
do i = 1, 30
write(20, '(I4, 2X, I4, 2X, F6.2)') myclass%students(i)%rank, myclass%students(i)%id, myclass%students(i)%total
end do
close(20)
print *, "Enter Student ID to query: "
read *, id
call myclass%query_student(id)
end program student_evaluation
module student_module
implicit none
type :: Student
integer :: id
real :: scores(5)
real :: total
integer :: rank
end type Student
type :: Class
type(Student), dimension(30) :: students
real, dimension(5) :: avg_scores
integer, dimension(5) :: above_avg, below_avg
contains
procedure :: calculate_totals
procedure :: calculate_averages
procedure :: count_above_below_avg
procedure :: sort_by_total
procedure :: query_student
end type Class
contains
subroutine calculate_totals(this)
class(Class), intent(inout) :: this
integer :: i
do i = 1, 30
this%students(i)%total = sum(this%students(i)%scores)
end do
end subroutine calculate_totals
subroutine calculate_averages(this)
class(Class), intent(inout) :: this
integer :: i, j
this%avg_scores = 0.0
do j = 1, 5
do i = 1, 30
this%avg_scores(j) = this%avg_scores(j) + this%students(i)%scores(j)
end do
this%avg_scores(j) = this%avg_scores(j) / 30.0
end do
end subroutine calculate_averages
subroutine count_above_below_avg(this)
class(Class), intent(inout) :: this
integer :: i, j
this%above_avg = 0
this%below_avg = 0
do j = 1, 5
do i = 1, 30
if (this%students(i)%scores(j) > this%avg_scores(j)) then
this%above_avg(j) = this%above_avg(j) + 1
else
this%below_avg(j) = this%below_avg(j) + 1
end if
end do
end do
end subroutine count_above_below_avg
subroutine sort_by_total(this)
class(Class), intent(inout) :: this
integer :: i, j
type(Student) :: temp
do i = 1, 29
do j = i + 1, 30
if (this%students(i)%total < this%students(j)%total) then
temp = this%students(i)
this%students(i) = this%students(j)
this%students(j) = temp
end if
end do
end do
do i = 1, 30
this%students(i)%rank = i
end do
end subroutine sort_by_total
subroutine query_student(this, id)
class(Class), intent(inout) :: this
integer, intent(in) :: id
integer :: i
do i = 1, 30
if (this%students(i)%id == id) then
print *, "Student ID: ", this%students(i)%id
print *, "Rank: ", this%students(i)%rank
print *, "Scores: ", this%students(i)%scores
print *, "Total Score: ", this%students(i)%total
return
end if
end do
print *, "Student ID not found!"
end subroutine query_student
end module student_module
program student_evaluation
use student_module
implicit none
type(Class) :: myclass
integer :: i, j, id
character(len=20) :: filename
character(len=100) :: line
real :: score
filename = "student_scores.txt"
open(unit=10, file=filename, status="old", action="read")
do i = 1, 30
read(10, *) myclass%students(i)%id, myclass%students(i)%scores
end do
close(10)
call myclass%calculate_totals()
call myclass%calculate_averages()
call myclass%count_above_below_avg()
call myclass%sort_by_total()
open(unit=20, file="sorted_scores.txt", status="replace", action="write")
do i = 1, 30
write(20, '(I4, 2X, I4, 2X, F6.2)') myclass%students(i)%rank, myclass%students(i)%id, myclass%students(i)%total
end do
close(20)
print *, "Enter Student ID to query: "
read *, id
call myclass%query_student(id)
end program student_evaluation
![](/assets/image-20240626225634144-CySwgFUQ.png)
![](/assets/image-20240626225710351-BHWMtoBm.png)
![](/assets/image-20240626232557274-Dxj0Eb2L.png)
五、编写程序,实现进制间的相互转换
1、十进制、二进制、八进制、十六进制;
2、用子程序实现
program ConvertBases
implicit none
integer :: decimalNumber
character(len=32) :: binary, octal, hexadecimal
! 用户输入十进制数字
print*, '请输入一个十进制数:'
read*, decimalNumber
! 十进制转换到其他进制
call DecimalToBinary(decimalNumber, binary)
call DecimalToOctal(decimalNumber, octal)
call DecimalToHexadecimal(decimalNumber, hexadecimal)
! 显示结果
print*, '二进制表示: ', trim(binary)
print*, '八进制表示: ', trim(octal)
print*, '十六进制表示: ', trim(hexadecimal)
contains
! 十进制转二进制
subroutine DecimalToBinary(decimal, binary)
integer, intent(in) :: decimal
character(len=32), intent(out) :: binary
integer :: n, i
binary = ' '
n = decimal
i = 0
do while (n > 0)
i = i + 1
binary(len(binary)-i+1:len(binary)-i+1) = char(iachar('0') + mod(n, 2))
n = n / 2
end do
end subroutine DecimalToBinary
! 十进制转八进制
subroutine DecimalToOctal(decimal, octal)
integer, intent(in) :: decimal
character(len=32), intent(out) :: octal
integer :: n, i
octal = ' '
n = decimal
i = 0
do while (n > 0)
i = i + 1
octal(len(octal)-i+1:len(octal)-i+1) = char(iachar('0') + mod(n, 8))
n = n / 8
end do
end subroutine DecimalToOctal
! 十进制转十六进制
subroutine DecimalToHexadecimal(decimal, hexadecimal)
integer, intent(in) :: decimal
character(len=32), intent(out) :: hexadecimal
integer :: n, i, remainder
character(len=1), dimension(0:15) :: hexdigits
data hexdigits /'0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'A', 'B', 'C', 'D', 'E', 'F'/
hexadecimal = ' '
n = decimal
i = 0
do while (n > 0)
i = i + 1
remainder = mod(n, 16)
hexadecimal(len(hexadecimal)-i+1:len(hexadecimal)-i+1) = hexdigits(remainder)
n = n / 16
end do
end subroutine DecimalToHexadecimal
end program ConvertBases

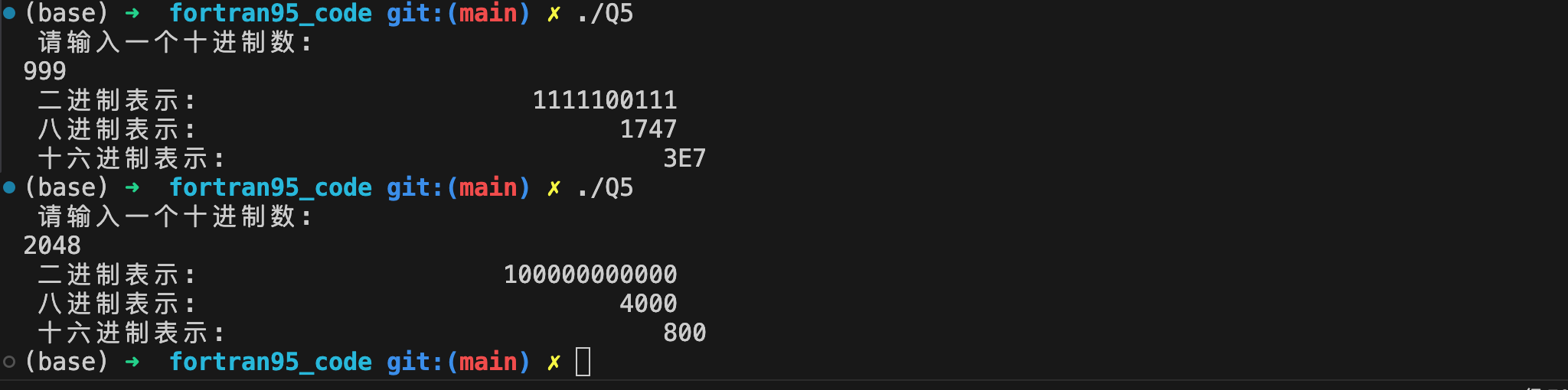

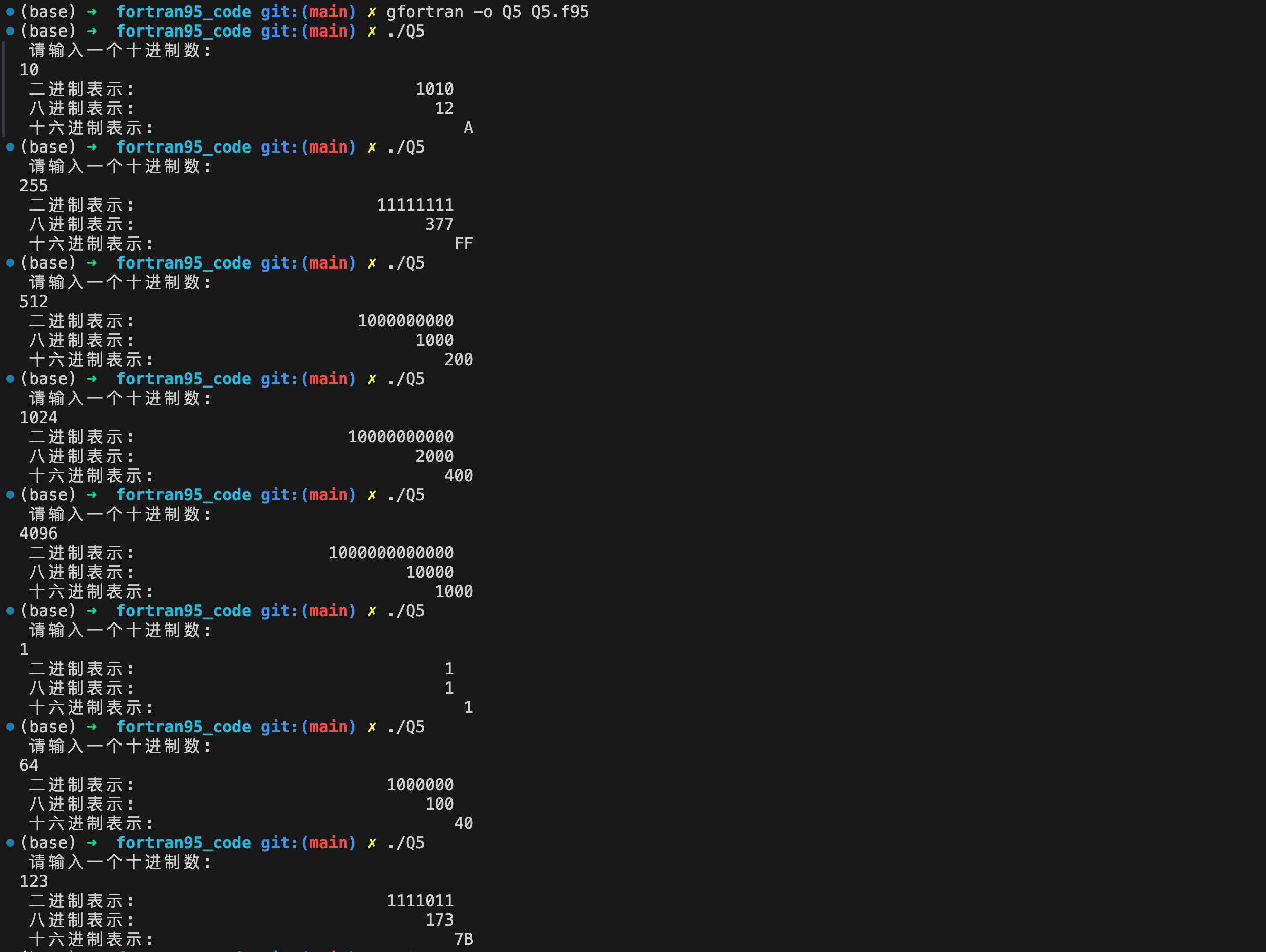

下面是 10 个测试例子以及它们的预期结果:
输入:10
- 二进制:1010
- 八进制:12
- 十六进制:A
输入:255
- 二进制:11111111
- 八进制:377
- 十六进制:FF
输入:512
- 二进制:1000000000
- 八进制:1000
- 十六进制:200
输入:1024
- 二进制:10000000000
- 八进制:2000
- 十六进制:400
输入:4096
- 二进制:1000000000000
- 八进制:10000
- 十六进制:1000
输入:1
- 二进制:1
- 八进制:1
- 十六进制:1
输入:64
- 二进制:1000000
- 八进制:100
- 十六进制:40
输入:123
- 二进制:1111011
- 八进制:173
- 十六进制:7B
输入:999
- 二进制:1111100111
- 八进制:1747
- 十六进制:3E7
输入:2048
- 二进制:100000000000
- 八进制:4000
- 十六进制:800
这些例子涵盖了从小到大不同范围的十进制数,并显示了它们转换成二进制、八进制和十六进制的结果。可以将这些例子用于测试程序的正确性。
![](/assets/image-20240626234704931-BdiQUCHK.png)
![](/assets/image-20240626234718186-D8WaeURu.png)
六、求各种不同形状截面的截面特性
1、查阅相关资料(如材料力学教材),给出相应形状的截面特性计算公式(可采用表格形式) ;
2、对任意形状的截面,利用分块法求解截面的几何特性,对于各个截面可以简化成各种形状的块,利用 NSHAPE(或一个控制变量)来控制各块的参数。要求输出截面面积、形心位置、惯性矩。
3、程序至少应包括矩形、圆形、圆端形、空心圆形四种截面;
NSHAPE = 1 矩形 NSHAPE = 2 圆端形
NSHAPE = 3 圆形 NSHAPE = 4 空心圆形
好的,以下是解决此Fortran编程题的具体步骤和代码示例。
1. 截面特性计算公式
好的,我们来逐步解决这个问题。首先,我会提供一些基本的截面特性计算公式,然后我们会用Fortran编程实现这些公式,以求解不同形状截面的特性。
下面是四种基本形状的截面特性公式表:
形状 | 面积 (A) | 形心位置 (Yc, Xc) | 惯性矩 (I) |
---|---|---|---|
矩形 | (关于x轴) | ||
圆形 | |||
圆端形 | 稍复杂,待后续计算 | 待计算 | 待计算 |
空心圆形 |
2. 分块法计算公式
利用分块法,可以将复杂截面分解为简单形状的组合。每个块的面积 ,形心 和惯性矩 可以独立计算,然后通过下面的公式组合:
总面积 ( A ):
形心位置 :
惯性矩 (以y轴为例,x 轴同理):

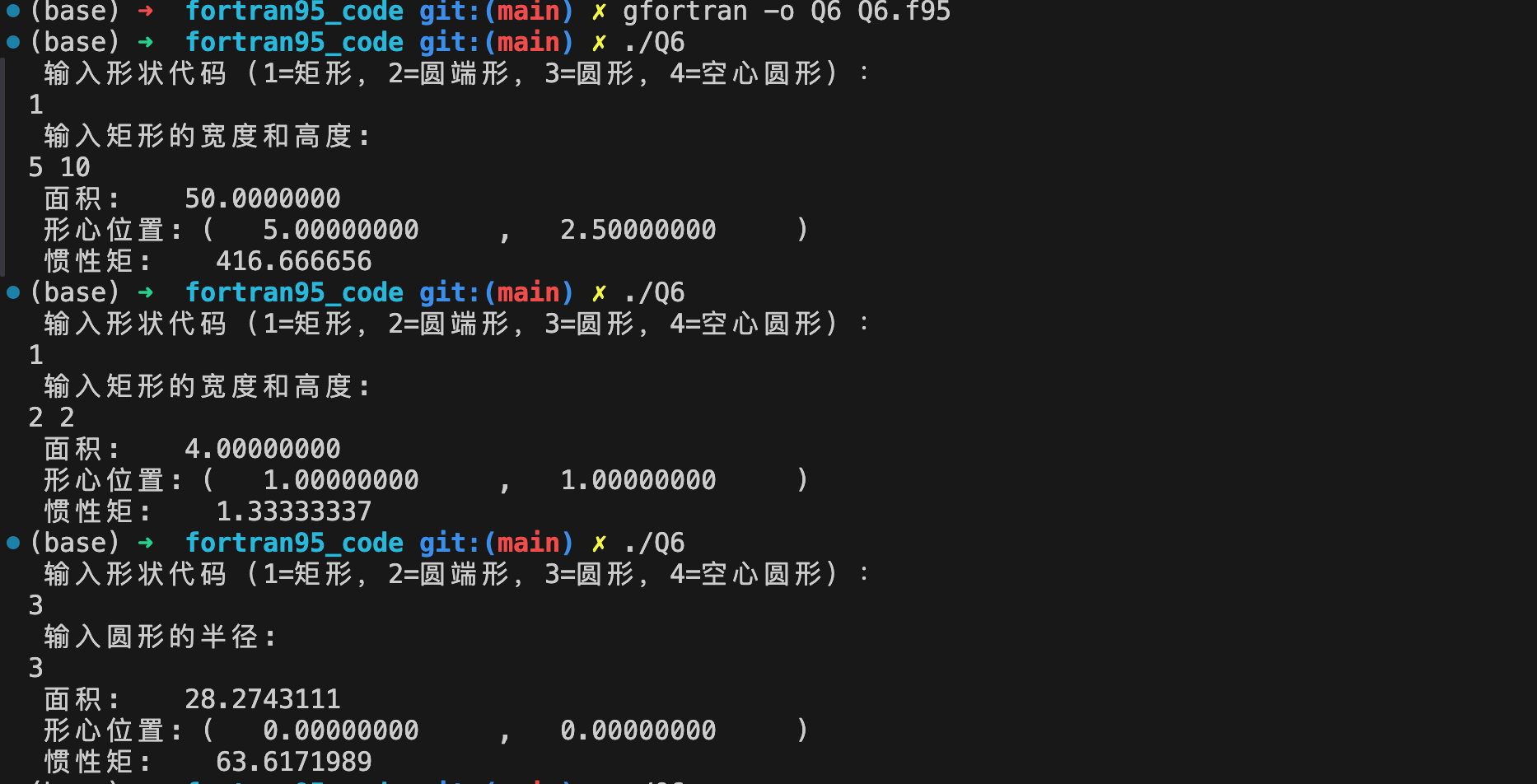

program SectionProperties
implicit none
integer :: NSHAPE
real :: A, Yc, Xc, I
! 用户输入选择形状
print *, '输入形状代码(1=矩形,2=圆端形,3=圆形,4=空心圆形):'
read *, NSHAPE
select case (NSHAPE)
case (1)
call Rectangle(A, Yc, Xc, I)
case (2)
call TShape(A, Yc, Xc, I) ! 假设已有圆端形计算函数
case (3)
call Circle(A, Yc, Xc, I)
case (4)
call HollowCircle(A, Yc, Xc, I)
end select
print *, '面积: ', A
print *, '形心位置: (', Yc, ',', Xc, ')'
print *, '惯性矩: ', I
end program SectionProperties
! 矩形函数定义
subroutine Rectangle(A, Yc, Xc, I)
real, intent(out) :: A, Yc, Xc, I
real :: b, h
print *, '输入矩形的宽度和高度:'
read *, b, h
A = b * h
Yc = h / 2
Xc = b / 2
I = b * h**3 / 12
end subroutine Rectangle
! 圆形函数定义
subroutine Circle(A, Yc, Xc, I)
real, intent(out) :: A, Yc, Xc, I
real :: r
print *, '输入圆形的半径:'
read *, r
A = 3.14159 * r**2
Yc = 0.0
Xc = 0.0
I = 3.14159 * r**4 / 4
end subroutine Circle
! 空心圆形函数定义
subroutine HollowCircle(A, Yc, Xc, I)
real, intent(out) :: A, Yc, Xc, I
real :: R, r
print *, '输入外圆和内圆的半径:'
read *, R, r
A = 3.14159 * (R**2 - r**2)
Yc = 0.0
Xc = 0.0
I = 3.14159 * (R**4 - r**4) / 4
end subroutine HollowCircle
! 圆端形(T形)函数定义(示例)
subroutine TShape(A, Yc, Xc, I)
real, intent(out) :: A, Yc, Xc, I
real :: b, h, r
print *, '输入T形的宽度、高度和圆端半径:'
read *, b, h, r
A = b * h + 3.14159 * r**2
Yc = (h * b * (h / 2) + 3.14159 * r**2 * (h + r)) / A
Xc = b / 2
I = (b * h**3 / 12) + (3.14159 * r**4 / 4) + (3.14159 * r**2 * (h + r - Yc)**2)
end subroutine TShape
![](/assets/image-20240627010206987-DBGSdRnZ.png)
公众号:AI悦创【二维码】
![](/gzh.jpg)
AI悦创·编程一对一
AI悦创·推出辅导班啦,包括「Python 语言辅导班、C++ 辅导班、java 辅导班、算法/数据结构辅导班、少儿编程、pygame 游戏开发、Web、Linux」,全部都是一对一教学:一对一辅导 + 一对一答疑 + 布置作业 + 项目实践等。当然,还有线下线上摄影课程、Photoshop、Premiere 一对一教学、QQ、微信在线,随时响应!微信:Jiabcdefh
C++ 信息奥赛题解,长期更新!长期招收一对一中小学信息奥赛集训,莆田、厦门地区有机会线下上门,其他地区线上。微信:Jiabcdefh
方法一:QQ
方法二:微信:Jiabcdefh
![](/zsxq.jpg)
- 0
- 0
- 0
- 0
- 0
- 0
