Assignment 5:Battleship

AI悦创原创2022年11月30日1v1java 1v1纽约大学一对一NYU 1v11v1java 1v1纽约大学一对一NYU 1v1大约 21 分钟...约 6248 字

Assignment 5: Battleship

Introduction to Computer Science

计算机科学概论

Due by on 11/30 by Midnight

截止日期是11月30日午夜

1 Code of Conduct

1行为准则

All assignments are graded, meaning we expect you to adhere to the academic integrity standards of NYU. To any confusion regarding this, we will briefly state what is and isn’t allowed when working on an assignment.

所有的作业都是分级的,这意味着我们希望你遵守纽约大学的学术诚信标准。为了避免混淆,我们将简要说明在做作业时什么是允许的,什么是不允许的。

Any document and program code that you submit must be fully written by yourself. You can, of course, discuss work with fellow students, as long as these discussions are restricted to general solution techniques. Put differently, these discussions should not be about concrete code you are writing, nor about specific results you wish to submit. When discussing an assignment with others, this should never lead to you possessing the complete or partial solution of others, regardless of whether the solution is in paper or digital form, and independent of who made the solution. That means, you are also not allowed to possess solutions by someone from a different year or course or someone from another university, or code from the Internet, etc. This also implies that there is never a reason to share your code with fellow students, and that there is no valid reason to publish your code online in any form.

您提交的任何文档和程序代码都必须完全由您自己编写。当然,您可以与同学讨论工作,只要这些讨论仅限于一般的解决方案技术。换句话说,这些讨论不应该是关于您正在编写的具体代码,也不应该是关于您希望提交的具体结果。当与他人讨论一项任务时,这绝不应该导致你拥有他人的全部或部分解决方案,无论解决方案是纸质的还是数字的形式,也不应与解决方案是谁制定的无关。这意味着,你也不允许拥有来自不同年级、不同课程或其他大学的人的解决方案,或来自互联网的代码,等等。这也意味着永远没有理由和同学们分享你的代码,也没有正当的理由以任何形式在网上发布你的代码。

Every student is responsible for the work they submit. If there is any doubt during the grading about whether a student created the assignment themselves (e.g. if the solution matches that of others), we reserve the option to let the student explain why this is the case. In case doubts remain, or we decide to directly escalate the issue, the suspected violations will be reported to the academic administration according to the policies of NYU (see https://cs.nyu.edu/home/undergrad/policy.html).

每个学生都要对他们提交的作业负责。如果在评分过程中对学生是否自己创建作业有任何疑问(例如,解决方案是否与他人的解决方案匹配),我们保留让学生解释原因的选项。如果仍有疑问,或我们决定直接升级问题,将根据纽约大学的政策,向学术管理报告可疑的违规行为(见https://cs.nyu.edu/home/undergrad/policy.html)。

2 Introduction

2介绍

Battleship (also Battleships or Sea Battle) is a guessing game for two players. It is known worldwide as a pencil and paper game which dates from World War I was published by various companies as a pad-and-pencil game in the 1930s, and was released as a plastic board game by Milton Bradley in 1967.

《战列舰》(也叫《战列舰》或《海战》)是两名玩家的猜谜游戏。它作为一款纸笔游戏而闻名于世,最早可追溯到第一次世界大战,20世纪30年代由多家公司发行,最初是一款纸笔游戏,1967年由米尔顿·布拉德利作为一款塑料桌游发行。

The goal of this assignment is to implement a simplified version of the Battleship game in Java. This will give you practice in working with arrays and multidimensional arrays, loops, methods, etc. Additionally, it is a good exercise in decomposing a larger problem into smaller and more manageable parts using methods.

本次作业的目标是用Java实现一个简化版的《战舰》游戏。这将使您练习使用数组和多维数组、循环、方法等。此外,使用方法将较大的问题分解为更小的、更易于管理的部分是一种很好的练习。

The Battleship game is played on a two-dimensional board. The board is typically square (usually 10x10 cells) and the individual cells in the grid are identified by letters and numbers. In this simplified version of Battleship, only one player plays against the computer. At the start of the game, the computer secretly places one (hidden) ship with the size of 4 cells/ blocks on the board in a random location and with a random orientation, either horizontally or vertically. As the location of the ship is concealed from the player, the goal of the player is to "destroy" the ship with the least number of guesses. Hereby, the player takes turns by entering a coordinate of the target cell. If it is a hit, the cell is marked by an 'X', otherwise by a '#' for a miss. When all cells of the ship are guessed by the player, the ship is sunk and the game is won.

《战舰》游戏是在一个二维棋盘上进行的。板子通常是正方形的(通常是10x10个单元格),网格中的单个单元格由字母和数字标识。在这个简化版的《战舰》中,只有一个玩家与电脑对抗。在游戏开始时,电脑秘密地将4个单元/块大小的船放置在随机位置和随机方向(水平或垂直)上。因为船只的位置是隐藏在玩家面前的,所以玩家的目标是用最少的猜测次数“摧毁”船只。在此,玩家轮流输入目标单元格的坐标。如果击中,则用“X”标记单元格,否则用“#”表示失败。当玩家猜中所有单元格时,船就沉没了,游戏就赢了。

Figure 1 shows an example of the Battleship game on a 10x10 grid.

图1显示了《战舰》游戏在10x10网格上的例子。

image-20221129213724491
image-20221129213724491

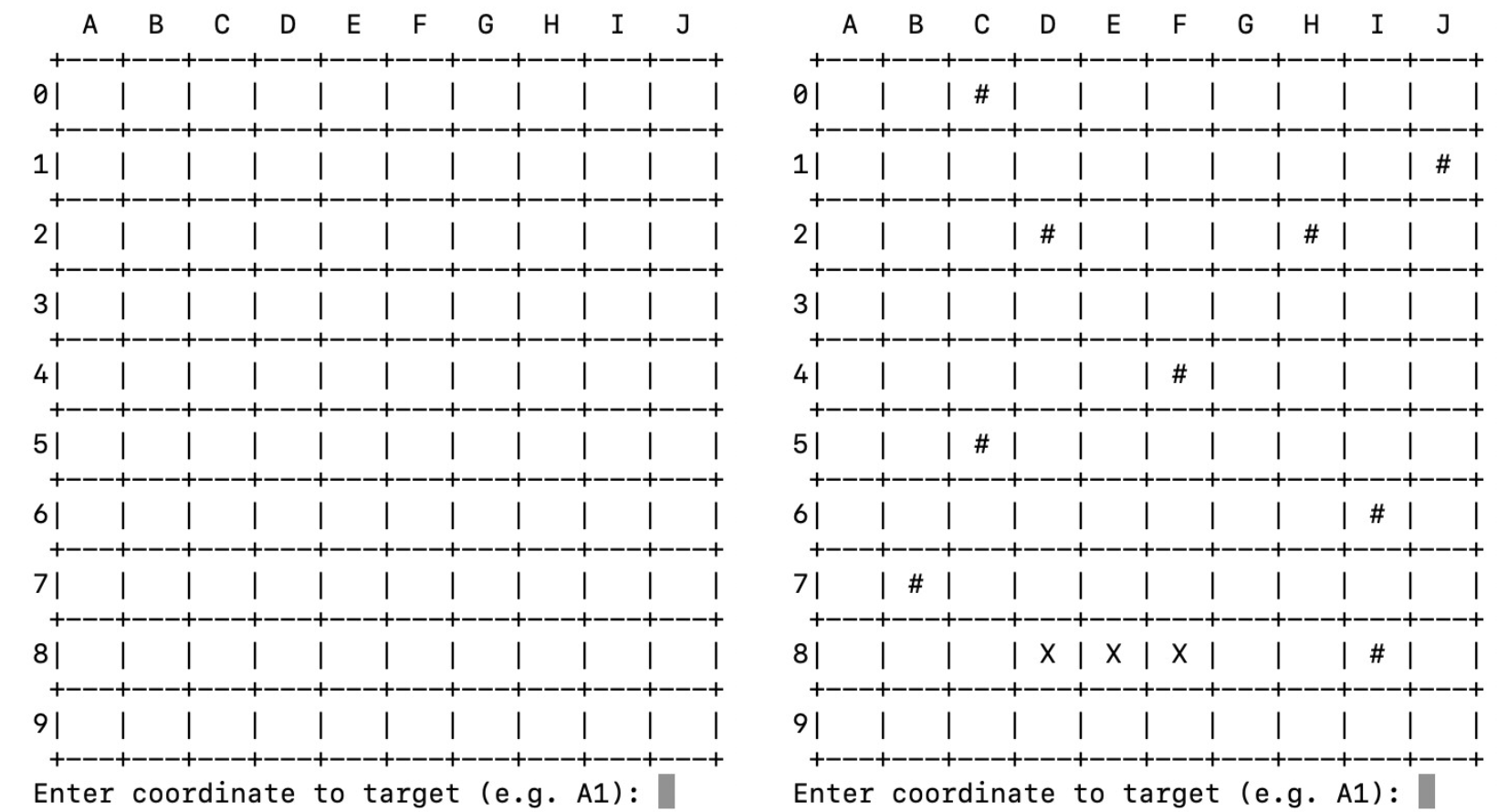

Figure 1: Example output after the start of the game and after multiple turns with 3 hits at D8, E8, F8

图1:游戏开始后和多次回合后的输出示例,在D8, E8, F8处有3次命中

3 Implementation

3实现

The implementation of this game mainly consists of two phases:

本游戏的实施主要包括两个阶段:

Initialization:

初始化:

At the start of the game, an (empty) board is created, where columns are identified by a letter and rows by a number (see Figure 1). The computer then randomly places a ship on the board, where the location of the ship is described by a random row, column, and orientation. As the ship occupies a number of consecutive cells on the board, the random row and column is used as the first cell of the ship and then extends either vertically (down) or horizontally (right) based on the length of the ship. In order to randomly select a row, column, and orientation of the ship, use the Math.random() methods. When drawing random numbers for the first cell of the ship, make sure that a) the row and column is within the board dimensions and b) the ship can actually be placed completely within the board dimensions, i.e. no cell of the ship exceeds the board dimensions.

在游戏开始时,会创建一个(空的)棋盘,其中的列由字母标识,行由数字标识(见图1)。然后,计算机随机地将一艘船放置在棋盘上,船的位置由随机的行、列和方向描述。由于船在板上占据了许多连续的单元格,因此随机行和列被用作船的第一个单元格,然后根据船的长度垂直(向下)或水平(右)扩展。为了随机选择船的行、列和方向,请使用Math.random()方法。当为船的第一个单元格绘制随机数时,确保a)行和列在板尺寸内,b)船实际上可以完全放置在板尺寸内,即船的任何单元格都不能超过板尺寸。

As the location of the ship is concealed from the user, you have to find a solution to store the cells that are occupied by the ship without revealing them to the player, for example use another board that holds the locations of the ship which is not shown to the user and only used to verify a hit or miss. After creating the board, the board should be printed on the screen so that the user gets an idea on how the board looks like.

随着船的位置从用户隐藏,你必须找到一个解决方案来存储细胞所占领的船没有透露他们的球员,例如使用另一个董事会,这艘船的位置没有显示给用户,仅用于验证了小姐或创建董事会后,董事会应打印在屏幕上,用户将获得一个想法关于董事会的样子。

Please note the board dimensions and the size of the ship are declared as constant (global) variables and that the program dynamically creates a board based on these values. In other words, do not "hardcode" the board dimensions, size of the ship, etc. This allows you to easily change these values without modifying multiple lines of your code. The code snippet below shows an example of the first lines of your code:

请注意,板尺寸和船的大小被声明为常量(全局)变量,程序根据这些值动态创建一个板。换句话说,不要“硬编码”板尺寸,船的大小等。这允许您轻松地更改这些值,而无需修改多行代码。下面的代码片段显示了代码的第一行示例:

final int SHIP_SIZE = 4; // constant for the size of 的大小为常量
the ship final int DIMENSION = 10; // constant for the  的常数
size of the board (square) // create the board
// randomly place the ship. Use Math.random() to return an int
random numbers // display the board

Game phase:

比赛阶段:

After creating the board, the player is asked to make a guess by entering a coordinate (location) within the board. The coordinate consists of the column (a letter) followed by the row (a digit). For example, valid coordinates are B4, C1, A6, etc. Notice that the column letter is case-sensitive that the input clearly describes the format of the expected input. In case the player enters an invalid input or an invalid coordinate, the program informs the player about this and asks for a new coordinate. Examples for invalid input are AB, A 6, 1A, 32, A;5, etc. or coordinates out of the board dimensions.

在创建棋盘后,玩家需要通过输入棋盘内的坐标(位置)进行猜测。坐标由列(一个字母)和行(一个数字)组成。例如,有效坐标是B4、C1、A6等。请注意列字母区分大小写,输入清楚地描述了期望输入的格式。如果玩家输入了一个无效的输入或一个无效的坐标,程序会通知玩家这一点并要求一个新的坐标。无效输入的例子有AB, a6, 1A, 32, A;5等,或者板外尺寸的坐标。

After a valid user input, the program places the guess on the board, where a hit is denoted as an 'X' and a miss as a '#'. The program must also maintain a score indicating the number of guesses (1 point for each guess whether it’s a hit or a miss). After each turn, the program must check if the game is won, i.e. the entire ship is sunk (all the four pieces of the ship were found). If so, the program must inform the user that the game is over, and display the score (Number of guesses). Otherwise, the board should be printed reflecting the updated cells and ask for another input. Before printing the updated board. So, you can assume that the player will keep playing until all of the four pieces of the ship are discovered (which could take a minimum 4 or maximum of 100 guesses). Obviously, 4 guess is a much better score than a 100.

在有效的用户输入之后,程序将猜测结果放在黑板上,命中的表示为“X”,未命中的表示为“#”。该程序还必须保持一个分数,表示猜测的次数(无论猜对与否,每猜一次都得1分)。在每个回合后,程序必须检查游戏是否获胜,即整个船被击沉(船的所有四个部件都被找到)。如果是,程序必须通知用户游戏结束,并显示分数(猜测次数)。否则,板应打印反映更新单元格和要求另一个输入。在打印更新后的电路板之前。所以,你可以假设玩家会一直玩下去,直到发现船的所有四个部件(这可能需要最少4次或最多100次猜测)。显然,猜4次比100分要好得多。

3 Grading

DescriptionScore (/20)
Initialization of the board
初始化单板
2
Printing of the board and board labels, as depicted in Figure 1
印刷的纸板和纸板标签,如图1所示
2
Randomly placing the ship
随机放置船只
3
Checking for invalid user input (letter followed by number)
检查无效的用户输入(后跟数字的字母)
2
Checking for invalid input (repetitive guesses of same cell, out of board, etc)
检查无效输入(重复猜测相同单元格、脱板等)
2
Updating the board cells based on user input
根据用户输入更新板单元格
2
Detecting end of the game: When the ship is sank (when user find all of the 4 pieces of the ship).
检测游戏结束:当船沉没时(当用户发现船的所有4块碎片)。
3
Displaying a correct score after a win (when all the 4 pieces of the ship are found).
在获胜后显示正确的分数(当船的4个部件都找到时)。
2
Terminate the game after a win.
获胜后终止游戏。
1
Usage of comments and readability of code (style, variable naming, using methods, etc.)
注释的使用和代码的可读性(样式、变量命名、使用方法等)
1

4 Submission

Please note: Your submission must have set the board dimensions to 10x10 and the ship length to 4 cells.

he deadline of this assignment is due by 11/30 by midnight via Brightspace. You can

directly submit your .java file on Brightspace. Submissions via are not accepted. Late submissions will be penalized by 10% per class and it will not be accepted after 3 classes past the due date. Note that your solution must work using Java and without any syntax errors. In case your code does not work using Java, your submission will not be graded.

Extra Credit for excellent innovative solutions and added technical feature!
