Assessed coursework 5
Introduction
This document contains the questions for Part 5 of your assessed coursework for the unit Algorithms and Machine Learning (MATH20017). The marks for this coursework will count 10% towards your final grade.
Please contact henry.reeve@bristol.ac.uk with any questions regarding this document. Whilst I am unable to provide solutions in advance of all work being handed in, I can provide clarification.
The contents of this document should not be distributed without permission.
There are 4 sections to this coursework and you are encouraged to attempt to complete all sections.
Handing in your coursework
How you present your coursework is important. You should complete your coursework using either Google Colab, a Jupyter notebook, or an Rmarkdown. Whichever approach you take you must submit both (1) the notebook itself (typically either a .ipynb file or a .rmd file) and (2) an HTML file in which all of the blocks of code have been run. If in doubt, use the the suggested approach described in Assessed Coursework 1.
Important: Ensure that you use the correct format to submit your report as failure to do so can lead to a substantial loss of marks.
1. Libraries
In this assignment we shall use several libraries. It is recommended that you begin by first loading the following libraries within your notebook.
# numerical linear algebra tools
import numpy as np
from scipy.stats import norm
# machine learning tools
from sklearn.base import BaseEstimator, ClassifierMixin,RegressorMixin,TransformerMixin
from sklearn.utils.extmath import randomized_svd
from sklearn.model_selection import train_test_split
from sklearn.metrics import mean_squared_error
from sklearn.kernel_approximation import RBFSampler
from sklearn import pipeline,datasets
from sklearn.preprocessing import StandardScaler
import torch
# plotting tools
from matplotlib import pyplot as plt
安装指令:
conda install numpy scipy
conda install scikit-learn
conda install matplotlib
conda install pytorch torchvision torchaudio cpuonly -c pytorch
Section A (20 marks)
The focus of this section is binary classification.Let’s suppose we have a data set consisting of feature vectors and binary labels . Our goal in this section will be to learn a linear classification model where where
Let’s consider the following perceptron algorithm for choosing a weight vector and a bias for a linear classification model.
Algorithm 1: Perceptron learning algorithm
Input: A data set and a maximum number of iterations max_iterations
1 // Initialise a d-dimensional vector w
2 // Initialise the intercept
3 converged = FALSE
4 num_iterations = 0
5 while not converged and num_iterations < max_iterations do
6 converged = TRUE
7 for i = 1 to n do
8 if then
// if we encounter a mistake we update our weights and biases
9
10
11 converged = FALSE
12 num_iterations = num_iterations + 1
13 return ()
(Q1) Suppose that there is no choice of weight vector and bias such that for all .How many times will the algorithm return to line 5?
Solution Q1
推理:
- 在感知机学习算法中,目标是找到一个权重向量 和偏差 ,使得对于所有训练样本 ,都有 。
- 算法在每次迭代过程中检查每个样本是否正确分类。如果发现某个样本被错误分类(即 ),它会更新权重 和偏差 。
- 如果问题条件说明不存在一组权重向量和偏差可以完全正确地分类所有样本,这意味着至少有一个样本在每次迭代中始终被错误分类。
- 因此,在每次迭代中至少有一个样本会导致权重和偏差更新。这意味着
converged
标志永远不会被设置为TRUE
。 - 算法将继续迭代直到达到最大迭代次数
max_iterations
。在这个过程中,它每次都会返回到第5行进行下一次迭代。
结论:
算法将重复返回到第 5 行,直到达到设定的最大迭代次数 max_iterations
。在这种情况下,算法永远不会收敛,因为总会有至少一个样本被错误分类。
(Q2) The following code gives the outline for an implementation of the perceptron. However, the fit method for learning the weights and biases has not been implemented yet. Complete the code by implementing the fit following the perceptron learning algorithm described above.
class MyClassicalPerceptronModel(BaseEstimator, ClassifierMixin):
def __init__(self, max_iterations=1000):
self.max_iterations = max_iterations
def fit(self, X, y):
self.weight = np.zeros(X.shape[1])
self.bias = 0
# MISSING PERCEPTRON LEARNING ALGORITHM
# Return the perceptron model
return self
def predict(self, X):
# multiply features by weight vector
return np.sign(X@self.weight+self.bias)
Next run the code from Section A of MATH20017_2023_CourseworkPart5TestCode.ipynb
to evaluate the perceptron model MyClassicalPerceptronModel. If your implementation has been successful your test code should produce a similar plot.
class MyClassicalPerceptronModel(BaseEstimator, ClassifierMixin):
def __init__(self, max_iterations=1000):
self.max_iterations = max_iterations
def fit(self, X, y):
self.weight = np.zeros(X.shape[1])
self.bias = 0
converged = False
num_iterations = 0
while not converged and num_iterations < self.max_iterations:
converged = True
for i in range(X.shape[0]):
if y[i] * (np.dot(self.weight, X[i]) + self.bias) <= 0:
self.weight = self.weight + y[i] * X[i]
self.bias = self.bias + y[i]
converged = False
num_iterations += 1
return self
def predict(self, X):
return np.sign(np.dot(X, self.weight) + self.bias)
# 导入基础估计器和分类混合器,这是创建自定义模型的基本要求
from sklearn.base import BaseEstimator, ClassifierMixin
import numpy as np
# 定义感知机模型类
class MyClassicalPerceptronModel(BaseEstimator, ClassifierMixin):
def __init__(self, max_iterations=1000):
# 初始化最大迭代次数
self.max_iterations = max_iterations
def fit(self, X, y):
# 初始化权重为零,权重的长度等于特征数量
self.weight = np.zeros(X.shape[1])
# 初始化偏置为零
self.bias = 0
# 初始化收敛标志为假
converged = False
# 初始化迭代次数计数器
num_iterations = 0
# 当未收敛且迭代次数小于最大迭代次数时循环
while not converged and num_iterations < self.max_iterations:
# 假设已经收敛,如果发现错误分类则更改为假
converged = True
# 遍历数据集中的每个样本
for i in range(X.shape[0]):
# 如果样本被错误分类(即 y_i(w^T x_i + b) <= 0)
if y[i] * (np.dot(self.weight, X[i]) + self.bias) <= 0:
# 更新权重
self.weight = self.weight + y[i] * X[i]
# 更新偏置
self.bias = self.bias + y[i]
# 将收敛标志设置为假
converged = False
# 迭代次数加一
num_iterations += 1
# 返回训练好的模型
return self
def predict(self, X):
# 对新的数据集进行预测,即计算 w^T x + b 并取符号
return np.sign(np.dot(X, self.weight) + self.bias)
# section A test code
# generate random data
def generate_linearly_seperable_classification_data(num_examples,random_state=0):
np.random.seed(random_state)
X=np.random.uniform(0, 1, size=(num_examples,2))
y=np.sign(X[:,0]+X[:,1]-1)
return X,y

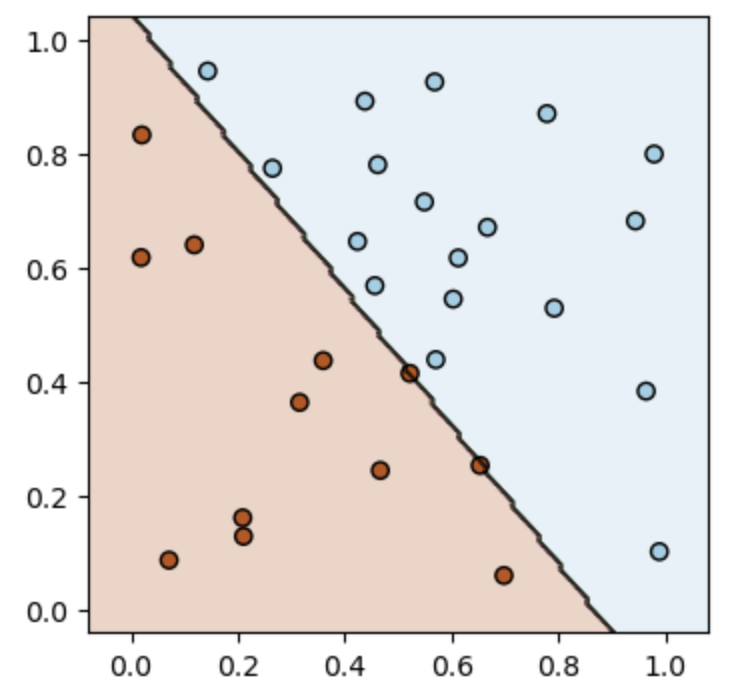

# plot the decision boundary for a trained model
def plot_decision_boundary(clf, X, y, cmap='Paired_r',
bandwidth=0.01,size=4,linewidth=0.25,alpha=0.25):
# adapted from similar function by Richard Johansson
a_min, a_max = X[:,0].min() - 10*bandwidth, X[:,0].max() + 10*bandwidth
b_min, b_max = X[:,1].min() - 10*bandwidth, X[:,1].max() + 10*bandwidth
aa, bb = np.meshgrid(np.arange(a_min, a_max, bandwidth),
np.arange(b_min, b_max, bandwidth))
Z = clf.predict(np.c_[aa.ravel(), bb.ravel()])
Z = Z.reshape(aa.shape)
plt.figure(figsize=(size,size))
plt.contourf(aa, bb, Z, cmap=cmap, alpha=alpha)
plt.contour(aa, bb, Z, colors='k', linewidths=linewidth)
plt.scatter(X[:,0], X[:,1], c=y, cmap=cmap, edgecolors='k')
plt.show()
# Test the pereceptron model
data_set = generate_linearly_seperable_classification_data(30)
X, y = data_set
perceptron_model=MyClassicalPerceptronModel()
perceptron_model.fit(X,y)
plot_decision_boundary(perceptron_model, X, y)
Section B (20 marks)
In this section we continue our investigation into binary classification. As in the previous section we suppose we have a data set consisting of feature vectors and binary labels .Let’s suppose our goal is to learn a classification rule for a linear model of the form .
A more practical approach is to minimise a regularised loss function such as the logistic loss is defined by .
We select weights and a bias to minimise the empirical average of the regularised loss function over the training data,
Recall that given a convex function and a vector , we say that is a {sub-gradient} of at if for all we have,
(Q1) Take and consider the function $g_i:\mathbb{R}^d \rightarrow \mathbb{R} $ defined by . Give a formula for a sub-gradient of at
(Q2) Complete the following code to give an implementation of a regularised logistic regression model trained via gradient descent before testing your implementation on the code below. You may wish to use the Py-Torch functions torch.mean
, torch.log
and torch.exp
. In addition, it may be useful to look at the Python IntroductionToGradientDescent.ipynb
in Blackboard.
class MyLogRegModel(BaseEstimator,ClassifierMixin):
def __init__(self, weight_decay=0.1, num_iterations=1000, learning_rate=1, random_state=0):
# initialise parameters
self.weight_decay = weight_decay
self.num_iterations = num_iterations
self.learning_rate = learning_rate
self.random_state = random_state
def fit(self, X, y):
num_examples, num_features = X.shape
# set random seed for reproducibility
np.random.seed(self.random_state)
# generate random weight and bias
w = np.random.normal(size=num_features)
b = np.random.uniform(1)
# convert weight and bias to torch tensor for gradient computation
w = torch.tensor(w,requires_grad=True)
b = torch.tensor(b,requires_grad=True)
# convert data to torch tensor format
X = torch.tensor(X)
y = torch.tensor(y)
# start gradient descent
for i in range(self.num_iterations):
### IMPORTANT DETAILS MISSING HERE
# zero out gradients ready for the next iteration
w.grad.detach()
b.grad.detach()
w.grad.zero_()
b.grad.zero_()
self.weight = w.detach().numpy()
self.bias = b.detach().numpy()
# Return the logistic regression model
return self
def predict(self, X):
# multiply features by weight vector
return np.sign(X@self.weight+self.bias)
Next use the code from Section B from MATH20017_2023_CourseworkPart5TestCode.ipynb
to test the your implementation of logistic regression.
Q1:
Q2:
class MyLogRegModel(BaseEstimator, ClassifierMixin):
def __init__(self, weight_decay=0.1, num_iterations=1000, learning_rate=1, random_state=0):
# initialise parameters
self.weight_decay = weight_decay
self.num_iterations = num_iterations
self.learning_rate = learning_rate
self.random_state = random_state
def fit(self, X, y):
num_examples, num_features = X.shape
# set random seed for reproducibility
np.random.seed(self.random_state)
# generate random weight and bias
w = np.random.normal(size=num_features)
b = np.random.uniform(1)
# convert weight and bias to torch tensor for gradient computation
w = torch.tensor(w,requires_grad=True)
b = torch.tensor(b,requires_grad=True)
# convert data to torch tensor format
X = torch.tensor(X)
y = torch.tensor(y)
# start gradient descent
for i in range(self.num_iterations):
### IMPORTANT DETAILS MISSING HERE
predictions = torch.matmul(X, w) + b
loss = torch.mean(torch.log(1 + torch.exp(-y * predictions))) + self.weight_decay * torch.sum(w**2)
loss.backward()
w.data -= self.learning_rate * w.grad.data
b.data -= self.learning_rate * b.grad.data
# zero out gradients ready for the next iteration
w.grad.detach()
b.grad.detach()
w.grad.zero_()
b.grad.zero_()
self.weight = w.detach().numpy()
self.bias = b.detach().numpy()
# Return the logistic regression model
return self
def predict(self, X):
# multiply features by weight vector
return np.sign(X@self.weight+self.bias)
class MyLogRegModel(BaseEstimator, ClassifierMixin):
def __init__(self, weight_decay=0.1, num_iterations=1000, learning_rate=1, random_state=0):
self.weight_decay = weight_decay
self.num_iterations = num_iterations
self.learning_rate = learning_rate
self.random_state = random_state
def fit(self, X, y):
num_examples, num_features = X.shape
np.random.seed(self.random_state)
w = np.random.normal(size=num_features)
b = np.random.uniform(1)
w = torch.tensor(w, requires_grad=True)
b = torch.tensor(b, requires_grad=True)
X = torch.tensor(X)
y = torch.tensor(y)
for i in range(self.num_iterations):
logits = torch.matmul(X, w) + b
loss = torch.mean(torch.log(1 + torch.exp(-y * logits))) + self.weight_decay * torch.norm(w)**2
loss.backward()
with torch.no_grad():
w -= self.learning_rate * w.grad
b -= self.learning_rate * b.grad
w.grad.zero_()
b.grad.zero_()
self.weight = w.detach().numpy()
self.bias = b.detach().numpy()
return self
def predict(self, X):
return np.sign(np.dot(X, self.weight) + self.bias)
class MyLogRegModel(BaseEstimator, ClassifierMixin):
def __init__(self, weight_decay=0.1, num_iterations=1000, learning_rate=1, random_state=0):
# 初始化参数:正则化系数(权重衰减)、迭代次数、学习速率和随机种子。
self.weight_decay = weight_decay
self.num_iterations = num_iterations
self.learning_rate = learning_rate
self.random_state = random_state
def fit(self, X, y):
num_examples, num_features = X.shape # 获取数据的样本数和特征数。
np.random.seed(self.random_state) # 设置随机种子以确保结果可重复。
w = np.random.normal(size=num_features) # 随机初始化权重。
b = np.random.uniform(1) # 随机初始化偏置。
w = torch.tensor(w, requires_grad=True) # 将权重转换为 torch 张量并设置梯度。
b = torch.tensor(b, requires_grad=True) # 将偏置转换为 torch 张量并设置梯度。
X = torch.tensor(X) # 将特征数据转换为 torch 张量。
y = torch.tensor(y) # 将标签转换为 torch 张量。
for i in range(self.num_iterations): # 开始梯度下降迭代。
predictions = torch.matmul(X, w) + b # 计算当前权重和偏置下的预测值。
loss = torch.mean(torch.log(1 + torch.exp(-y * predictions))) + self.weight_decay * torch.sum(w**2) # 计算损失函数值。
loss.backward() # 进行反向传播,计算梯度。
w.data -= self.learning_rate * w.grad.data # 更新权重。
b.data -= self.learning_rate * b.grad.data # 更新偏置。
w.grad.detach() # 重置权重的梯度。
b.grad.detach() # 重置偏置的梯度。
w.grad.zero_() # 清零权重的梯度。
b.grad.zero_() # 清零偏置的梯度。
self.weight = w.detach().numpy() # 将训练好的权重转换回 numpy 数组。
self.bias = b.detach().numpy() # 将训练好的偏置转换回 numpy 数组。
return self # 返回训练好的模型。
def predict(self, X):
# 使用训练好的权重和偏置进行预测。
return np.sign(X @ self.weight + self.bias)
Section C (20 marks)
In this section we focus on high-dimensional regression. We have a centered data set consisting of feature vectors and real-valued labels . Let’s write for the data matrix with rows equal to the transposed feature vectors. We also writee for the identity matrix. In this section we shall investigate the ridge regression model defined by for all ,where .
(Q1) Suppose that has rank and let be the right singular vectors of the singular values of and the left singular vectors of . Prove that for any , the ridge regression weight vector defined by can be rewritten as .
You can use the following facts without proof. However, you must state when you use each fact.
We can write
The right singular vectors are orthonormal.
The left singular vectors are orthonormal.
We can extend to form an orthonormal basis of .
Given an orthonormal basis of and strictly positive scalars the symmetric matrix has inverse .
Given an orthonormal basis of , we can write the identity matrix as .
We can efficiently compute the truncated singular value decomposition within Python by using the randomized_svd
function from the sklearn library. We apply randomized_svd
as follows.
U_k, Sigma_k, V_k_T = randomized_svd(X, n_components=5, random_state=0)
Here, X is the data matrix, n_components
corresponds to the number of right singular vectors , and the random_state
argument is useful for reproducibility. The function returns U_k
which is an NumPy array corresponding to ,Sigma_k
which is a length NumPy array corresponding to the vector of singular values , and V_k_T
which corresponds to the transpose of the matrix
需要证明岭回归权重向量可以改写为 。
首先,从岭回归权重向量的定义出发,。
使用给定的事实:
- 是 中的正交向量。
- 是 中的正交向量。
- 可以将 扩展为 的正交基 。
- 给定 中的正交基 和严格正的标量 ,对称矩阵 有逆 。
- 给定 中的正交基 ,可以将身份矩阵 写作 。
基于这些事实,可以推导出:
(Q2) The following code gives an implementation of the ridge regression model. However, there is an important detail missing. Copy and edit the code to include the computation of the ridge weight vector. Notice that the key hyper-parameter for the ridge regression model is the hyper-parameter which in the following model is represented by the attribute self.weight_decay
. For simplicity, you may assume that the rank of the data matrix is ,so that .
class MyRidgeRegressionModel(BaseEstimator, RegressorMixin):
def __init__(self, weight_decay, random_state=0):
self.weight_decay = weight_decay
self.random_state = random_state
def fit(self, X, y):
# compute singular value decomposition
U, Sigma, VT = randomized_svd(X, n_components=X.shape[1], random_state=self.random_state)
# compute weight vector
self.weight_vector= # IMPORTANT DETAILS MISSING HERE
# compute bias term
self.bias = np.mean(y-X@self.weight_vector)
# Return the regression model
return self
def predict(self, X):
# multiply features by weight vector
return X@self.weight_vector+self.bias
To test the ride regression model code MyRidgeRegressionModel explore how it works across a range of values of the hyper-parameter by applying the test code in Section C from MATH20017_2023_CourseworkPart5TestCode.ipynb
.
class MyRidgeRegressionModel(BaseEstimator, RegressorMixin):
def __init__(self, weight_decay, random_state=0):
self.weight_decay = weight_decay
self.random_state = random_state
def fit(self, X, y):
# compute singular value decomposition
U, Sigma, VT = randomized_svd(X, n_components=X.shape[1], random_state=self.random_state)
# U, Sigma, VT = randomized_svd(X, n_components=min(X.shape), random_state=self.random_state)
# compute weight vector
# self.weight_vector= # IMPORTANT DETAILS MISSING HERE
self.weight_vector = np.sum((Sigma / (Sigma**2 + self.weight_decay)) * U.T.dot(y)[:, np.newaxis] * VT, axis=1)
# compute bias term
self.bias = np.mean(y-X@self.weight_vector)
# Return the regression model
return self
def predict(self, X):
# multiply features by weight vector
return X@self.weight_vector+self.bias
class MyRidgeRegressionModel(BaseEstimator, RegressorMixin):
def __init__(self, weight_decay, random_state=0):
self.weight_decay = weight_decay
self.random_state = random_state
def fit(self, X, y):
# 计算奇异值分解
U, Sigma, VT = randomized_svd(X, n_components=min(X.shape), random_state=self.random_state)
# 计算权重向量
self.weight_vector = np.sum((Sigma / (Sigma**2 + self.weight_decay)) * U.T.dot(y)[:, np.newaxis] * VT, axis=1)
# 计算偏置项
self.bias = np.mean(y - X.dot(self.weight_vector))
# 返回回归模型
return self
def predict(self, X):
# 使用权重向量乘以特征
return X.dot(self.weight_vector) + self.bias
class MyRidgeRegressionModel(BaseEstimator, RegressorMixin):
def __init__(self, weight_decay, random_state=0):
self.weight_decay = weight_decay
self.random_state = random_state
def fit(self, X, y):
U, Sigma, VT = randomized_svd(X, n_components=X.shape[1], random_state=self.random_state)
self.weight_vector = np.dot(VT.T, np.dot(np.diag(Sigma / (Sigma ** 2 + self.weight_decay)), np.dot(U.T, y)))
self.bias = np.mean(y - np.dot(X, self.weight_vector))
return self
def predict(self, X):
return np.dot(X, self.weight_vector) + self.bias
Section D (40 marks)
In the previous section we used the randomized_svd
function from the sklearn library to computed an ap-proximate truncated singular value decomposition. In this section your goal is to create your own function for computing an approximate truncated singular value decomposition.
More precisely, create a Python function called singular_value_decomposition_from_data_matrix
. Your function should take four arguments as inputs:
- A NumPy array called
data_matrix
corresponding to the matrix whose truncated SVD we wish to compute; - An integer called
n_components
corresponding to the number of right singular vectors, singular values and left singular vectors we wish to compute; - An integer called
n_iter
corresponding to the number of power iterations applied by the algorithm; - An integer called
random_state
corresponding to the random seed set within the algorithm.
Let’s write for the number of rows of data_matrix
, the number of columns in the data matrix (denoted data_matrix) and let be the number of components given by n_components
. The function singular_value_decomposition_from_data_matrix
will output a triple of the form U
, Sigma
, V_T
where:
- A NumPy array called U which is a matrix corresponding to the top left singular vectors of the data matrix;
- A NumPy array called Sigma of length containing the first non-negative singular values of the data matrix;
- A NumPy array called
V_T
which is a matrix corresponding to the matrix whose rows are the top right singular vectors of the data matrix.
Note that for you should avoid applying NumPy’s inbuilt functionality for computing matrix decompositions.
You may wish to use the following outline as a starting point.
def singular_value_decomposition_from_data_matrix(data_matrix:np.array, n_components: int, n_iter = 10, random_state=0):
pass
### Missing details here
return U, Sigma, V_T
Next, apply the test code in Section D from MATH20017_2023_CourseworkPart5TestCode.ipynb
.
from numpy.linalg import qr
def singular_value_decomposition_from_data_matrix(data_matrix, n_components, n_iter=10, random_state=0):
np.random.seed(random_state)
n_rows, n_cols = data_matrix.shape
# Step 1: Generate a random Gaussian matrix omega
omega = np.random.normal(size=(n_cols, n_components))
# Step 2: Compute Y = data_matrix @ omega
Y = data_matrix @ omega
# Additional power iterations (optional)
for _ in range(n_iter):
Y = data_matrix @ (data_matrix.T @ Y)
# Step 3: QR decomposition of Y to get Q
Q, _ = qr(Y, mode='reduced')
# Step 4: Compute B = Q.T @ data_matrix
B = Q.T @ data_matrix
# Step 5: SVD of B
U_hat, Sigma, V_T = np.linalg.svd(B, full_matrices=False)
# Step 6: Compute U = Q @ U_hat
U = Q @ U_hat
# Select only the top n_components
return U[:, :n_components], Sigma[:n_components], V_T[:n_components, :]
def singular_value_decomposition_from_data_matrix(data_matrix, n_components, n_iter=10, random_state=0):
# 设定随机数生成器的种子,确保结果的可重复性
np.random.seed(random_state)
# 获取数据矩阵的行数和列数
n, d = data_matrix.shape
# 初始化U矩阵,其大小为n行n_components列,初始值为0
U = np.zeros((n, n_components))
# 随机初始化V_T矩阵,其大小为n_components行d列
V_T = np.random.randn(n_components, d)
# 进行n_components次迭代,分别计算每个奇异向量
for i in range(n_components):
# 选取V_T的第i行作为初始向量
v = V_T[i, :]
# 执行指定次数的幂迭代过程
for _ in range(n_iter):
# 计算U的一个列向量
u = np.dot(data_matrix, v)
# 归一化u向量
u = u / np.linalg.norm(u)
# 计算V的一个行向量
v = np.dot(data_matrix.T, u)
# 归一化v向量
v = v / np.linalg.norm(v)
# 更新U和V_T矩阵
U[:, i] = u
V_T[i, :] = v
# 计算Sigma向量,包含n_components个奇异值
Sigma = np.array([np.linalg.norm(np.dot(data_matrix, V_T[i, :])) for i in range(n_components)])
# 返回计算得到的U矩阵、Sigma向量和V_T矩阵
return U, Sigma, V_T
from numpy.linalg import qr
def singular_value_decomposition_from_data_matrix(data_matrix: np.array, n_components: int, n_iter=10, random_state=0):
# 设置随机种子以确保结果的可重复性
np.random.seed(random_state)
# 获取数据矩阵的行数和列数
n_rows, n_cols = data_matrix.shape
# 生成一个随机高斯矩阵omega,用于后续的矩阵运算
omega = np.random.randn(n_cols, n_components)
# 计算Y = data_matrix @ omega
# 这是随机化SVD的关键步骤,用于生成近似的低维空间
Y = data_matrix @ omega
# 进行额外的幂迭代以提高近似的准确性
for _ in range(n_iter):
# 通过数据矩阵的转置和Y的乘积,以及随后的QR分解,来增强Y的准确度
Y = data_matrix.T @ Y
Q, _ = qr(Y, mode='reduced') # QR分解Y以获得Q矩阵
Y = data_matrix @ Q
# 对Y进行最终的QR分解,得到Q矩阵
Q, _ = qr(Y, mode='reduced')
# 计算B = Q.T @ data_matrix
# 通过这一步将原始数据投影到由Q构成的空间中
B = Q.T @ data_matrix
# 对B进行SVD分解
# 这一步骤得到截断SVD的核心分量:U_hat, Sigma, V_T
U_hat, Sigma, V_T = np.linalg.svd(B, full_matrices=False)
# 计算U = Q @ U_hat
# 通过这个操作我们得到了原始数据矩阵的左奇异向量
U = Q @ U_hat
return U, Sigma, V_T
def singular_value_decomposition_from_data_matrix(data_matrix: np.array,
n_components: int,
n_iter=10,
random_state=0):
np.random.seed(random_state)
n, d = data_matrix.shape
# Initialize random matrices
Omega = np.random.randn(d, n_components)
Y = data_matrix @ Omega
# Power iterations
for _ in range(n_iter):
Y = data_matrix.T @ Y
Q, _ = np.linalg.qr(Y)
Y = data_matrix @ Q
# Compute the thin SVD of the matrix Y
Q, R = np.linalg.qr(Y, mode='reduced')
B = Q.T @ data_matrix
# Singular value decomposition of B
U_B, Sigma, V_T_B = np.linalg.svd(B, full_matrices=False)
# Compute the singular vectors of the original matrix A
U = Q @ U_B
V_T = V_T_B
return U, Sigma, V_T
公众号:AI悦创【二维码】

AI悦创·编程一对一
AI悦创·推出辅导班啦,包括「Python 语言辅导班、C++ 辅导班、java 辅导班、算法/数据结构辅导班、少儿编程、pygame 游戏开发、Web、Linux」,全部都是一对一教学:一对一辅导 + 一对一答疑 + 布置作业 + 项目实践等。当然,还有线下线上摄影课程、Photoshop、Premiere 一对一教学、QQ、微信在线,随时响应!微信:Jiabcdefh
C++ 信息奥赛题解,长期更新!长期招收一对一中小学信息奥赛集训,莆田、厦门地区有机会线下上门,其他地区线上。微信:Jiabcdefh
方法一:QQ
方法二:微信:Jiabcdefh
