COL_WIDTH = 3

def pretty_print(board):
    '''This function takes one argument `board` (a list of lists of chars),
       and print the board in a pretty format'''

    # print the first line (the header line)
    print('   ', end='')
    for i in range(len(board[0])):
        print(f'{i:<{COL_WIDTH}}', end='')
    print()

    # print the second line, which consists of "-"
    print('   ' + '-' * (len(board[0]) * COL_WIDTH))

    # print the rest of lines
    for i in range(len(board)):
        # print the index
        print(f'{i:>{COL_WIDTH - 1}}', end='|')
        # print each piece in its corresponding position
        for j in board[i]:
            print(j, end='  ')
        print()
    print()

COL_WIDTH = 3

def pretty_print(board):
    """ Takes `board` (list of lists of piece characters) and formats and
    prints it in a readable format """

    n_cols = len(board[0])

    print_header(n_cols)
    print_lines(board)

    # final blank line
    print()

def print_header(n_cols):
    """ Takes `n_cols` (int, number of columns) and prints the header lines """

    # print column numbers
    line = " " * COL_WIDTH
    for i in range(n_cols):
        line += f"{i:<{COL_WIDTH}d}"
    print(line)

    # print dividing line
    print(" " * COL_WIDTH + "-" * COL_WIDTH * n_cols)

def print_lines(board):
    """ Takes board (list of lists of piece characters) and prints the
    formatted pieces of the board """

    for i, row in enumerate(board):
        # begins with index of the row then follows with the entries
        formatted_row_index = f"{str(i) + '|':>{COL_WIDTH}s}"
        entries = "".join(f"{letter:<{COL_WIDTH}s}" for letter in row)
        print(formatted_row_index + entries)

DIR_UP = "u"
DIR_DOWN = "d"
DIR_LEFT = "l"
DIR_RIGHT = "r"
BLANK_PIECE = "Z"

MIN_DIMENSION = 2
PIECE_MULTIPLE = 4
ROW, COL = 0, 1
DIRS = (DIR_UP, DIR_DOWN, DIR_LEFT, DIR_RIGHT)

def validate_input(board, position, direction):
    ''' Takes `board` (list of lists of piece characters), `position`
    (2-tuple of ints), and `direction` (string).
    Returns a bool indicating whether the input is valid '''
    return (valid_board_dimension(board) and position_in_board(board, position)
            and valid_direction(direction) and valid_board_value(board))

def valid_board_dimension(board):
    ''' Takes the `board` and returns a bool indicating if the board
    dimension is valid:
       1. board is a square
       2. board contains at least two rows and two columns '''

    # ensure that board has at least two rows and two columns
    if len(board) < MIN_DIMENSION:
        return False
    row_length = len(board[0])
    if row_length < MIN_DIMENSION:
        return False

    # ensure that the board is a "square"
    for row in board[1:]:
        if len(row) != row_length:
            return False

    return True

def valid_board_value(board):
    ''' Takes the `board` and returns a bool indicating if the board:
        1. contains upper case value only
        2. has multiple-of-four number of pieces for each colour '''

    colour_count = {}

    # check the validity of the board piece by piece, also record the
    # colour of pieces
    for row in board:
        for piece in row:

            # ensure that each piece is upper case
            if not piece.isupper():
                return False

            # record the colour of the piece
            if piece in colour_count:
                colour_count[piece] += 1
            else:
                colour_count[piece] = 1

    # check whether there are multiple-of-four for each colour
    for colour, count in colour_count.items():
        if colour != BLANK_PIECE and count % PIECE_MULTIPLE != 0:
            return False

    return True

def position_in_board(board, position):
    ''' Takes `board` and `position` (2-tuple of ints) and returns a bool
    indicating if the position is on the board '''
    return (0 <= position[ROW] < len(board)
            and 0 <= position[COL] < len(board[0]))


def valid_direction(direction):
    ''' Takes `direction` (str) and returns a bool indicating if the direction
    is one of the predefined direction values '''
    return direction in DIRS

DIR_UP = "u"
DIR_DOWN = "d"
DIR_LEFT = "l"
DIR_RIGHT = "r"
BLANK_PIECE = "Z"

def calc_swap_pos(row, col, direction):
    """ Takes the row index, column index of the piece and the direction of
        the move, calculates and return the position to be swapped to """
    if direction == DIR_UP:
        swap_row = row - 1
        swap_col = col
    elif direction == DIR_DOWN:
        swap_row = row + 1
        swap_col = col
    elif direction == DIR_RIGHT:
        swap_row = row
        swap_col = col + 1
    elif direction == DIR_LEFT:
        swap_row = row
        swap_col = col - 1
    else:
        return None
    return (swap_row, swap_col)

def adjacent(piece, board, row, col):
    """ Takes piece, board, row index and column index, and return a bool
        indicating whether any of the positions around board[row][col]
        contain piece """
    if col + 1 < len(board[row]) and board[row][col + 1] == piece:
        return True
    if col - 1 >= 0 and board[row][col - 1] == piece:
        return True
    if row + 1 < len(board) and board[row + 1][col] == piece:
        return True
    if row - 1 >= 0 and board[row - 1][col] == piece:
        return True
    return False

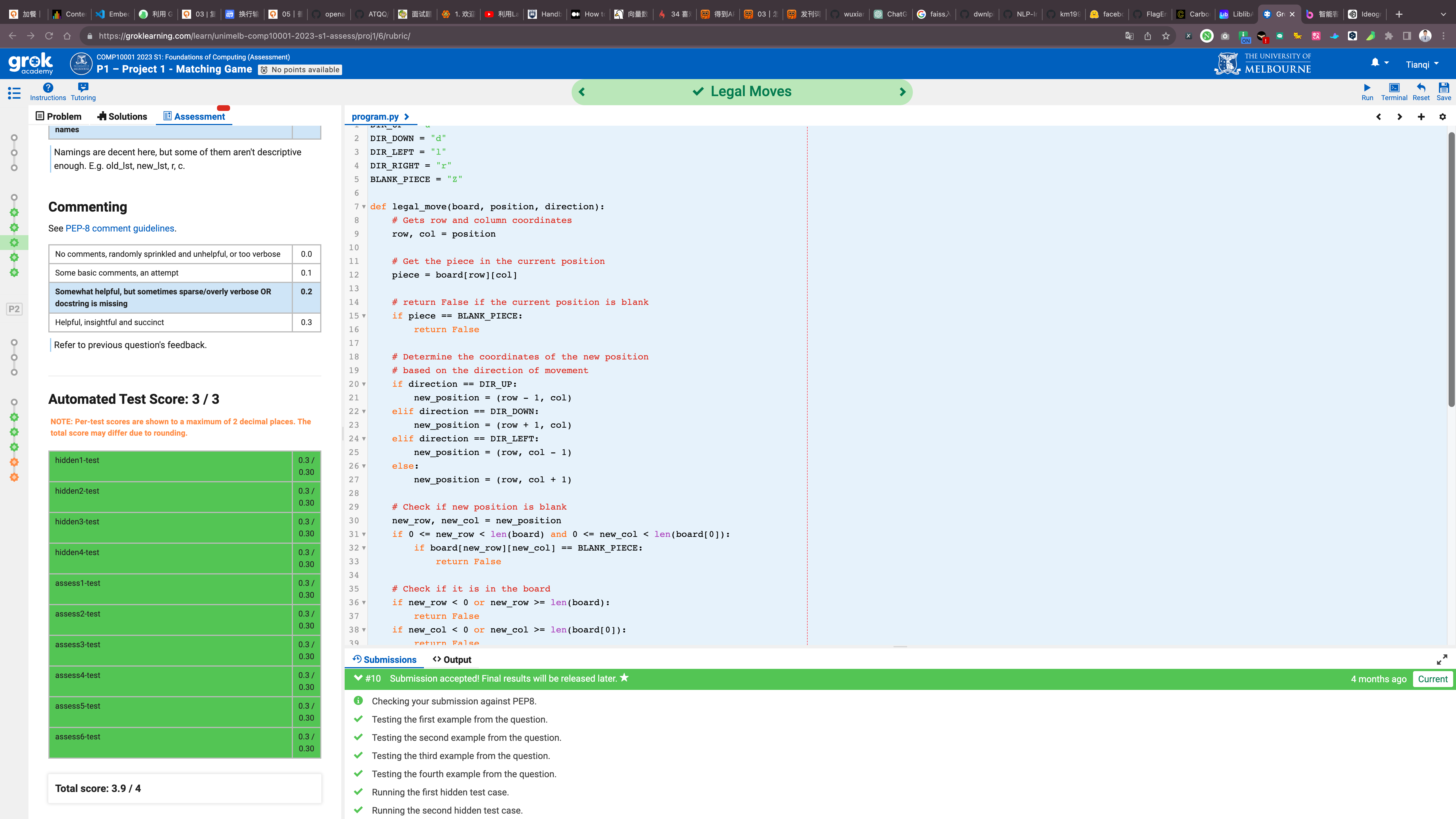

def legal_move(board, position, direction):
    """ Takes `board` (list of lists of piece characters), `position`
    (2-tuple of ints), `direction` (string). Returns a bool indicating whether
    the move is considered legal in the context of the specified game rules """
    row, col = position

    # Calculate the position of the token being swapped
    swap_row, swap_col = calc_swap_pos(row, col, direction)

    # Check if the swap position is legal
    if not (0 <= swap_row < len(board) and 0 <= swap_col < len(board[0])):
        return False

    # Check if either place is a blank
    piece = board[row][col]
    swap_piece = board[swap_row][swap_col]
    if piece == BLANK_PIECE or swap_piece == BLANK_PIECE:
        return False

    # Perform the swap
    board[row][col] = swap_piece
    board[swap_row][swap_col] = piece

    # Check if the result is legal
    is_legal = False
    if adjacent(piece, board, swap_row, swap_col):
        is_legal = True
    if adjacent(swap_piece, board, row, col):
        is_legal = True

    # Swap back
    board[row][col] = piece
    board[swap_row][swap_col] = swap_piece

    return is_legal

DIR_UP = "u"
DIR_DOWN = "d"
DIR_LEFT = "l"
DIR_RIGHT = "r"
BLANK_PIECE = "Z"

def legal_move(board, position, direction):
    ''' Takes `board` (list of lists of piece characters), `position`
    (2-tuple of ints), `direction` (string). Returns a bool indicating whether
    the move is considered legal in the context of the specified game rules '''

    next_position = get_next_position(board, position, direction)
    # make sure that the next position exists
    if not next_position:
        return False

    colour = board[position[0]][position[1]]
    next_colour = board[next_position[0]][next_position[1]]
    # blank space can't move
    if BLANK_PIECE in (colour, next_colour):
        return False

    # make sure that one of the adjacent piece has the same colour
    adj_swap_positions = adjacent_positions(board, next_position)
    adj_swap_positions.remove(position)
    adj_ori_positions = adjacent_positions(board, position)
    adj_ori_positions.remove(next_position)
    if has_colour(board, adj_swap_positions, colour) or\
       has_colour(board, adj_ori_positions, next_colour):
        return True

    return False

def has_colour(board, positions, colour):
    '''Return True if the given list of positions contain the colour given'''
    for x, y in positions:
        if board[x][y] == colour:
            return True
    return False

def adjacent_positions(board, position):
    '''For the board given, return the valid adjacent positions for the given
       position in a list'''
    cur_x, cur_y = position
    adj_positions = [(cur_x + 1, cur_y), (cur_x - 1, cur_y),
                     (cur_x, cur_y + 1), (cur_x, cur_y - 1)]

    # remove the positions that are out of bound
    for adj_pos in adj_positions:
        if not position_in_board(board, adj_pos):
            adj_positions.remove(adj_pos)

    return adj_positions

def position_in_board(board, position):
    '''Given the board and position, return True if the position
       is in the board'''
    return 0 <= position[0] < len(board) and 0 <= position[1] < len(board[0])

def get_next_position(board, position, direction):
    '''Takes the board, position of the piece and the direction,
       return the destination position that the piece moves to'''

    next_position = None
    cur_x, cur_y = position

    if direction == DIR_UP:
        next_position = cur_x - 1, cur_y
    elif direction == DIR_DOWN:
        next_position = cur_x + 1, cur_y
    elif direction == DIR_LEFT:
        next_position = cur_x, cur_y - 1
    elif direction == DIR_RIGHT:
        next_position = cur_x, cur_y + 1
    else:
        return None

    if not position_in_board(board, next_position):
        return None
    return next_position

DIR_UP = "u"
DIR_DOWN = "d"
DIR_LEFT = "l"
DIR_RIGHT = "r"
BLANK_PIECE = "Z"

def destroy(board):
    """ Finds a square of four identical pieces and removes them """
    # Find a square
    for i in range(len(board) - 1):
        for j in range(len(board[i]) - 1):
            if board[i][j] != BLANK_PIECE and board[i][j] == \
              board[i][j + 1] == board[i + 1][j] == board[i + 1][j + 1]:

                # Eliminate the pieces
                board[i][j] = BLANK_PIECE
                board[i][j + 1] = BLANK_PIECE
                board[i + 1][j] = BLANK_PIECE
                board[i + 1][j + 1] = BLANK_PIECE
                return True
    return False

def fix(board):
    """ Fills the gaps caused by eliminating pieces """
    # Move pieces up
    for j in range(len(board[0])):
        for i in range(len(board)):
            if board[i][j] == BLANK_PIECE:
                k = 1
                while i + k < len(board):
                    if board[i + k][j] != BLANK_PIECE:
                        board[i][j] = board[i + k][j]
                        board[i + k][j] = BLANK_PIECE
                        break
                    k = k + 1

    # Move pieces to the left
    for i in range(len(board)):
        for j in range(len(board[i])):
            if board[i][j] == BLANK_PIECE:
                k = 1
                while j + k < len(board[i]):
                    if board[i][j + k] != BLANK_PIECE:
                        board[i][j] = board[i][j + k]
                        board[i][j + k] = BLANK_PIECE
                        break
                    k = k + 1


def make_move(board, position, direction):
    """ Makes a move in accordance with the Task 4 rules """
    row = position[0]
    col = position[1]

    # Calculate position of piece to be swapped
    if direction == DIR_UP:
        swap_row = row - 1
        swap_col = col
    elif direction == DIR_DOWN:
        swap_row = row + 1
        swap_col = col
    elif direction == DIR_RIGHT:
        swap_row = row
        swap_col = col + 1
    elif direction == DIR_LEFT:
        swap_row = row
        swap_col = col - 1
    else:
        return False

    piece = board[row][col]
    swap_piece = board[swap_row][swap_col]

    # Perform the swap
    board[row][col] = swap_piece
    board[swap_row][swap_col] = piece

    # Continue to remove pieces and fill gaps until no more removals possible
    while(destroy(board)):
        fix(board)

    return board

import copy

DIR_UP = "u"
DIR_DOWN = "d"
DIR_LEFT = "l"
DIR_RIGHT = "r"
BLANK_PIECE = "Z"

FILL_SORT_KEY = lambda x: x == BLANK_PIECE
ROW, COL = 0, 1
DELTA_MOVE = {DIR_UP: (-1, 0), DIR_DOWN: (1, 0),
              DIR_LEFT: (0, -1), DIR_RIGHT: (0, 1)}

def clear_square(board):
    """
    Takes a 2D list board.
    Replaces a 2x2 equal piece square with a BLANK_PIECE square.
    Returns True if such square is found. Also mutates board.
    """
    for j in range(len(board) - 1):
        for i in range(len(board[0]) - 1):
            if board[j][i] == BLANK_PIECE:
                continue
            # Check if this is an equal piece square
            if board[j][i] == board[j][i + 1] \
                           == board[j + 1][i] \
                           == board[j + 1][i + 1]:
                # Replace the pieces with blank pieces
                board[j][i] = board[j][i + 1] \
                            = board[j + 1][i] \
                            = board[j + 1][i + 1] \
                            = BLANK_PIECE
                return True
    return False

def refresh_board(board):
    """
    Takes a 2D board list.
    "Refreshes" the board by clearing equal piece squares,
    and fills the gap produced.
    Mutates board.
    """
    nrows, ncols = len(board), len(board[0])
    # Keep clearing squares until there is no more left
    while clear_square(board):
        # Shift up
        for i in range(ncols):
            col = sorted([board[j][i] for j in range(nrows)],
                         key=FILL_SORT_KEY)
            for j in range(nrows):
                board[j][i] = col[j]

        # Shift left
        [row.sort(key=FILL_SORT_KEY) for row in board]

def make_move(board, position, direction):
    """
    Takes a 2D board list, initial position (j, i) tuple, and move direction.
    Performs the move and refreshes the board.
    Returns the resulting board.
    """
    board = copy.deepcopy(board)

    advance(board, position, direction)

    refresh_board(board)

    return board

def advance(board, old_pos, direction):
    """
    Takes a 2D board list, initial position (j, i) tuple, and move direction.
    *Mutates* the board if the two relevant pieces can be swapped.
    Returns the new position if the swap is successful, otherwise None.
    """
    new_pos = new_position(old_pos, direction)

    j_old, i_old = old_pos
    j_new, i_new = new_pos

    # Check if the two pieces to be swapped are valid
    if not within_bounds(board, new_pos) or \
       board[j_old][i_old] == BLANK_PIECE or \
       board[j_new][i_new] == BLANK_PIECE:
        return None

    # Swap the pieces
    board[j_old][i_old], board[j_new][i_new] = \
        board[j_new][i_new], board[j_old][i_old]
    return new_pos

def new_position(old_pos, direction):
    """
    Takes an initial position (j, i) tuple, and move direction.
    Returns the new position.
    """
    return add_2_tuple(old_pos, DELTA_MOVE[direction])

def within_bounds(board, pos):
    """
    Takes a 2D board list, and a position (j, i) tuple.
    Returns True if the position is within the board.
    """
    nrows, ncols = len(board), len(board[0])
    return 0 <= pos[ROW] < nrows and 0 <= pos[COL] < ncols

def add_2_tuple(tup0, tup1):
    """
    Takes two 2-tuples, and returns an element-wise sum of the two.
    """
    return tup0[ROW] + tup1[ROW], tup0[COL] + tup1[COL]

from hidden import legal_move, make_move
from copy import deepcopy

DIR_UP = "u"
DIR_DOWN = "d"
DIR_LEFT = "l"
DIR_RIGHT = "r"
BLANK_PIECE = "Z"

def all_moves(board):
    " Generates all moves (even illegal ones) "
    moves = []
    for row in range(len(board)):
        for col in range(len(board[row])):
            moves.append(((row, col), DIR_UP))
            moves.append(((row, col), DIR_DOWN))
            moves.append(((row, col), DIR_LEFT))
            moves.append(((row, col), DIR_RIGHT))
    return moves

def all_legal_moves(board, all_moves):
    """ Generates all legal moves from a list of moves """
    moves = []
    for position, direction in all_moves:
        if legal_move(board, position, direction):
            moves.append((position, direction))
    return moves

def has_won(board):
    """ Checks if the current board state is winning """
    for row in board:
        for val in row:
            if val != BLANK_PIECE:
                return False
    return True

def serialize(board):
    """ Converts the board to a single sequence of characters to
    make comparing boards more efficient """
    board_ser = ""
    for row in board:
        board_ser = board_ser + ''.join(row)
    return board_ser

def ai_player(board):
    """ Returns the sequence of moves needed to win the game, or None
    if winning is not possible from the current board. """
    open_nodes = [(board, [])]
    closed_nodes = []

    # Perform Breadth First Search on the board
    while len(open_nodes) > 0:
        next_board, path = open_nodes.pop(0)
        closed_nodes.append(serialize(next_board))

        # Return the winning solution
        if has_won(next_board):
            return path

        # Generate possible next moves for the current board position
        moves = all_moves(next_board)
        moves = all_legal_moves(next_board, moves)
        for move in moves:
            board2 = deepcopy(next_board)
            board2 = make_move(board2, move[0], move[1])
            board_ser = serialize(board2)

            # Check to see if we have encountered this board position
            # via another series of moves.
            if board_ser not in closed_nodes:
                open_nodes.append((board2, path + [move]))
                closed_nodes.append(board_ser)

    # Current board is unwinnable
    return None

from copy import deepcopy
from hidden import legal_move, make_move

DIR_UP = "u"
DIR_DOWN = "d"
DIR_LEFT = "l"
DIR_RIGHT = "r"
BLANK_PIECE = "Z"


def ai_player(board):
    """ Takes the board of the initial game state and runs breadth-first
      search to find a solution (sequence of moves that result in the board
      ending in winning state of all blank pieces). Returns None if no such
      winning board is found. """

    # queue is a list of tuples containing the board state and the moves
    # that lead to that state
    queue = [(board, [])]
    visited = set()

    while queue:
        # get the next board state to visit
        board, moves = queue.pop(0)
        if has_won(board):
            return moves

        # add the string of the board to visited set so we don't go in circles
        visited.add(str(board))

        # loop over each move for the current board and add it to the queue
        for move in generate_moves(board):
            next_board = make_move(deepcopy(board), *move)
            if str(next_board) not in visited:
                queue.append((next_board, moves + [move]))


def has_won(board):
    """ Returns a bool indicating if the board only has empty pieces """
    for row in board:
        for elem in row:
            if elem != BLANK_PIECE:
                return False
    return True


def generate_moves(board):
    """ Generates a list of possible moves for the current board.
     By symmetry we only need to generate for two perpendicular directions """
    return [((r, c), d) for r in range(len(board))
             for c in range(len(board[0])) for d in [DIR_LEFT, DIR_UP]
             if legal_move(board, (r, c), d)]
